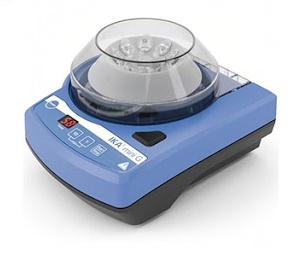

IKA mini G (0003958000) Centrifuges

Capacity: 8x 2,0ml

Pemitted density: 1.2 kg/dm3

Centrifugal acceleration: 2000 G

Kinetic energy max.: 20 Nm

Motor rating input: 12 W

Motor rating output: 8 W

Speed range: 6000 - 6000 rpm

Speed deviation: 5 %

Power-ON time: 99 min

Timer: yes

Timer display: 7 segment LED

Permissible ON time: 100 %

Quick stop: yes

Cover opening: automatic

Rotor exchange: without tool

Protective cover: yes

Dimensions (W x H x D): 155 x 105 x 175 mm

Weight: 1.4 kg

Permissible ambient temperature: 5 - 40 °C

Permissible relative humidity: 80 %

Protection class according to DIN EN 60529: IP 30

Voltage: 100 - 240 V

Frequency: 50/60 Hz

Power input: 12 W

DC Voltage: 24 V=

Current consumption: 500 mA
