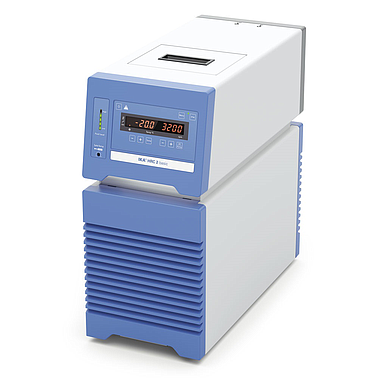

IKA HRC 2 basic (0025003742) Temperature Control

Appliance type: Circulation thermostat

Class designation acc. DIN 12876: III

Identification according to DIN 12876: FL

Cooling agent: R134a

Cooling agent quantity: 230 g

Cooling agent pressure max.: 20 bar

Heat output: 1500 W

Cooling capacity (@20°C): 400 W

Cooling capacity (@10°C): 370 W

Cooling capacity (@0°C): 320 W

Cooling capacity (@-10°C): 240 W

Cooling capacity (@-20°C): 130 W

Working temperature: -20 - 100 °C

Operating temperature min.: -20 °C

Operating temperature max. (with external heating): 100 °C

Temperature display: yes

Temperature stability DIN 12876 (@+70°C): 0.1 ±K

Temperature stability DIN 12876 (@-10°C): 0.1 ±K

Temperature control: PT 100

Working temperature sensor: PT 100

Safety temperature sensor: PT1000

Working temperature display: LED

Safety temperature display: LED

Temperature stability DIN 12876: 0.1 ±K

Display resolution: 0.1 K

Set temperature resolution: 0.1 ±K

Warning function optical: yes

Warning function acoustic: yes

Warning function excess temperature: yes

Adjustable safety circuit: 0 - 110 °C

Sub-level protection: yes

Over-level protection: yes

Filling volume: 1.4 - 4.0 l

Pump type: Pressure- / suction pump

Pump capacity adjustable: yes

Pump pressure max. (0 liters discharge flow): 0.5 bar

Pressure pump (suction side) (0 liter flow): 0.25 bar

Flow rate max. (0 bar back pressure): 21 l/min

Pump connection: M16x1

Calibration option: yes

Technical data complies with the standard: DIN 12876

Permissible ON time: 100 %

Dimensions (W x H x D):220 x 475 x 525 mm

Weight: 28.5 kg

Permissible ambient temperature: 5 - 32 °C

Permissible relative humidity: 80 %

Protection class according to DIN EN 60529: IP 21

RS 232 interface: yes

USB interface: yes

Voltage: 230 / 100 - 115 V

Frequency: 50/60 Hz

Power input: 1800 W
