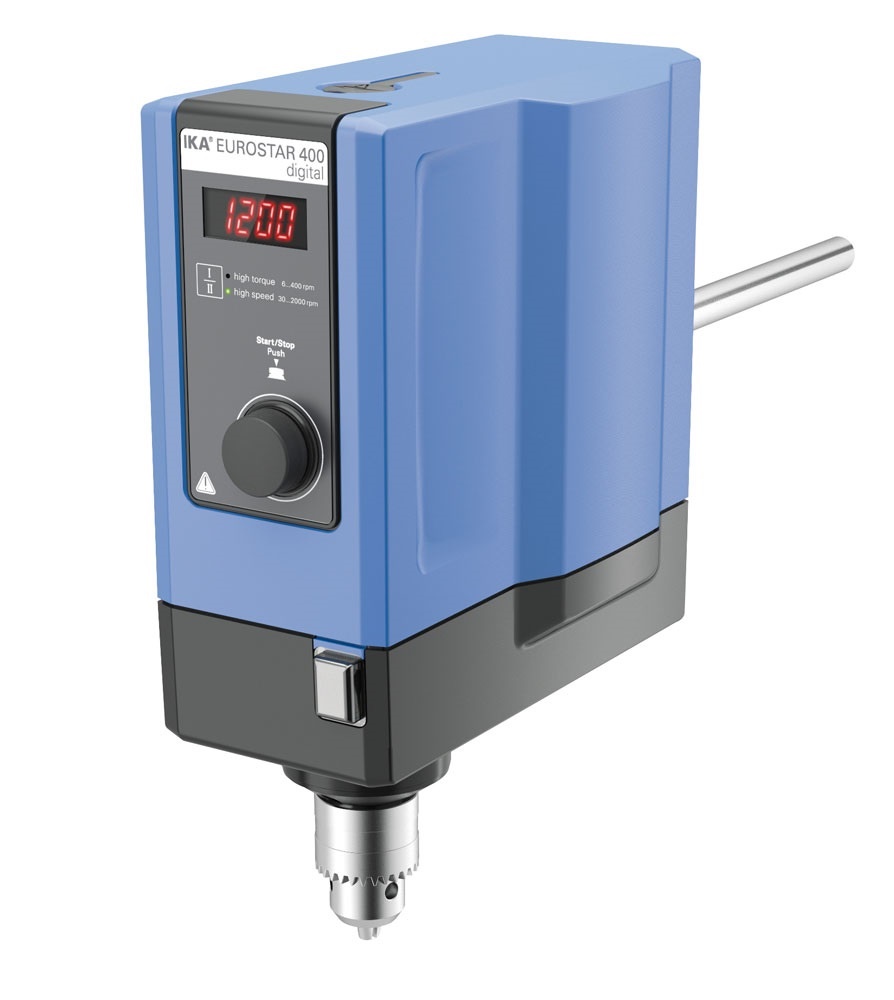

IKA EUROSTAR 400 digital (0004214000) overhead stirrer

Stirring quantity max. per stirring position (H2O): 150 l

Motor rating input: 220 W

Motor rating output: 176 W

Motor principle: Brushless DC

Speed display: 7 segment LED

Speed range: 0/6 - 2000 rpm

Viscosity max.: 100000 mPas

Output max. at stirring shaft: 167 W

Permissible ON time: 100 %

Torque max. at stirring shaft: 400 Ncm

torque I max.: 400 Ncm

torque II max.: 80 Ncm

Speed range I (50 Hz): 6 - 400 rpm

Speed range II (50 Hz): 30 - 2000 rpm

Speed range I (60 Hz): 6 - 400 rpm

Speed range II (60 Hz): 30 - 2000 rpm

Speed control: stepless

Setting accuracy speed: 1 ±rpm

Deviation of speed measurement n > 300rpm: 1 ±%

Deviation of speed measurement n < 300rpm: 3 ±rpm

Stirring element fastening: chuck

Plug-in coupling (Ø): 10 mm

Chuck range diameter: 3 - 16 mm

Hollow shaft, inner diameter: 10.3 mm

Hollow shaft (push-through - when stopped): yes

Fastening on stand: extension arm

Extension arm diameter: 16 mm

Extension arm length: 160 mm

Speed control: electronic

Nominal torque: 4 Nm

Dimensions (W x H x D): 114 x 300 x 245 mm

Weight: 7.8 kg

Permissible ambient temperature: 5 - 40 °C

Permissible relative humidity: 80 %

Protection class according to DIN EN 60529: IP 42

Voltage: 230 / 115 / 100 V

Frequency: 50/60 Hz

Power input: 226 W

Datasheet
