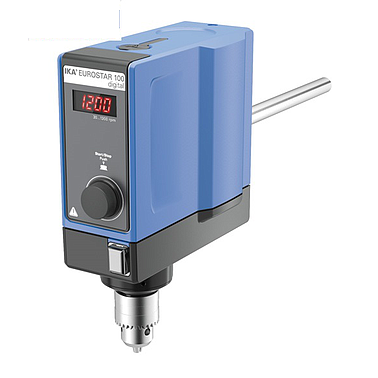

IKA EUROSTAR 100 digital (0004238100) overhead stirrer

Stirring quantity max. per stirring position (H2O): 100 l

Motor rating input: 186 W

Motor rating output: 136 W

Motor principle: Brushless DC

Speed display: 7 segment LED

Speed range: 0/30 - 1300 rpm

Viscosity max.: 70000 mPas

Output max. at stirring shaft: 136 W

Permissible ON time: 100 %

Torque max. at stirring shaft: 100 Ncm

Speed control: stepless

Setting accuracy speed: 1 ±rpm

Deviation of speed measurement n > 300rpm: 1 ±%

Deviation of speed measurement n < 300rpm: 3 ±rpm

Stirring element fastening: chuck

Chuck range diameter: 0.5 - 10 mm

Hollow shaft, inner diameter: 11 mm

Hollow shaft (push-through - when stopped): yes

Fastening on stand: extension arm

Extension arm diameter: 16 mm

Extension arm length: 220 mm

Speed control: electronic

Nominal torque: 1 Nm

housing material: alu-cast coating / thermoplastic polymer

Dimensions (W x H x D): 86 x 248 x 208 mm

Weight: 4.4 kg

Permissible ambient temperature: 5 - 40 °C

Permissible relative humidity: 80 %

Protection class according to DIN EN 60529: IP 42

Voltage: 230 / 115 / 100 V

Frequency: 50/60 Hz

Power input: 186 W
