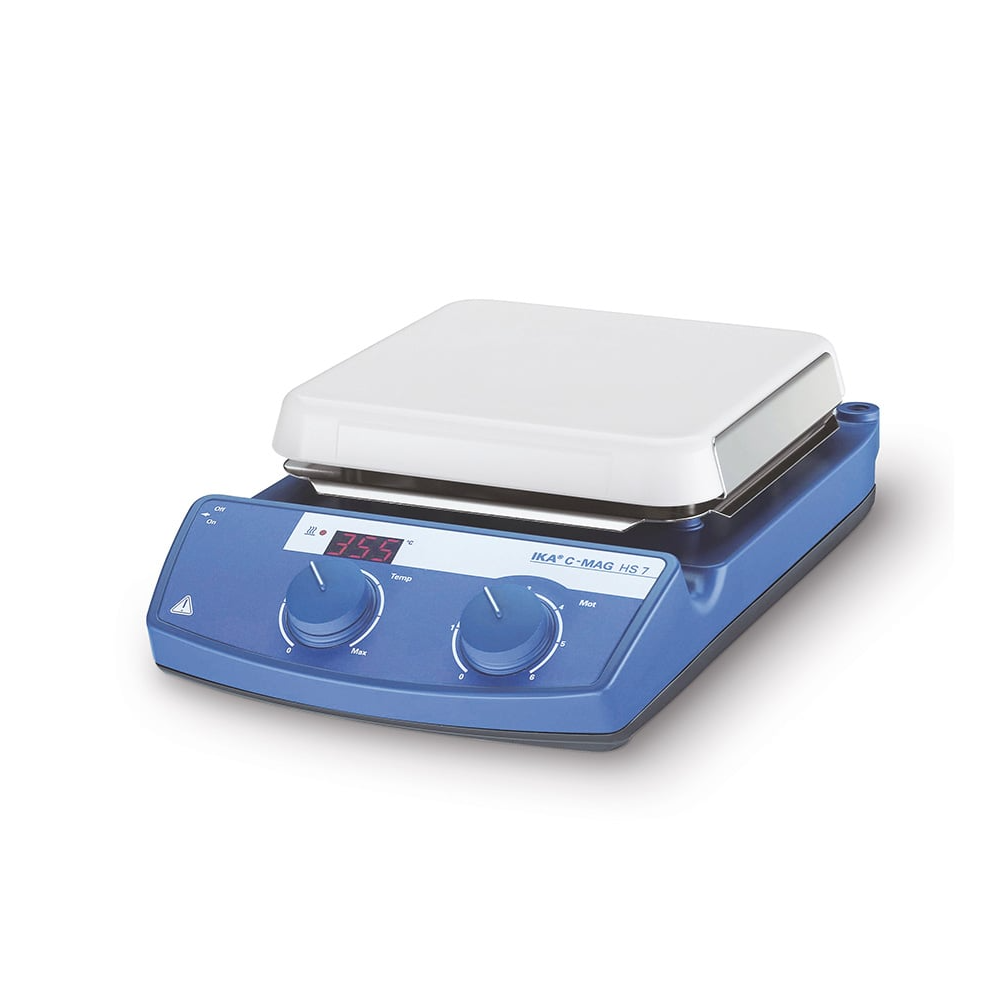

IKA C-MAG HS7(00035812A0) Magnetic Stirrer

Number of stirring positions: 1

Stirring quantity max. per stirring position (H2O): 10 l

Motor rating output: 1.5 W

Direction of rotation: left

Speed adjustment: scale 0 - 6

Speed range: 100 - 1500 rpm

Stirring bar length max.: 80 mm

Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h): +1 K

Heat output: 1000 W

Temperature display set-value: LED

Heating temperature range: 50 - 500 °C

Heat control: Turning knob

Heating rate heating plate: 5 K/min

Temperature setting resolution of heating plate: 5 K

Connection for ext. temperature sensor: ETS-D5

Fixed safety circuit: 550 °C

Set-up plate material: ceramic

Set-up plate dimensions: 180 x 180 mm

Dimensions (W x H x D): 220 x 105 x 335 mm

Weight: 5 kg

Permissible ambient temperature: 5 - 40 °C

Permissible relative humidity: 80 %

Protection class according to DIN EN 60529: IP 21

Voltage: 230 V

Frequency: 50/60 Hz

Power input: 1020 W
