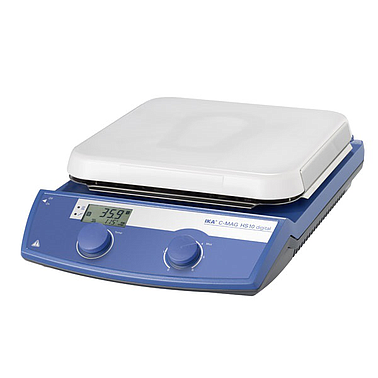

IKA C-MAG HS 10 digital (0004240400) Magnetic stirrer

Number of stirring positions: 1

Stirring quantity max. per stirring position (H2O): 15 l

Motor rating output: 1.5 W

Speed control: scale 0 - 6

Speed range: 100 - 1500 rpm

Stirring bar length max.: 80 mm

Heat output: 1500 W

Heating temperature range: 50 - 500 °C

Heat control: stepless

Heating rate heating plate: 5 K/min

Connection for ext. temperature sensor: PT1000

Fixed safety circuit: 550 °C

Set-up plate material: ceramic

Set-up plate dimensions: 260 x 260 mm

Dimensions (W x H x D): 300 x 105 x 415 mm

Weight: 6 kg

Permissible ambient temperature: 5 - 40 °C

Permissible relative humidity: 80 %

Protection class according to DIN EN 60529: IP 21

Voltage: 230 / 120 / 100 V

Frequency: 50/60 Hz

Power input: 1520 W
