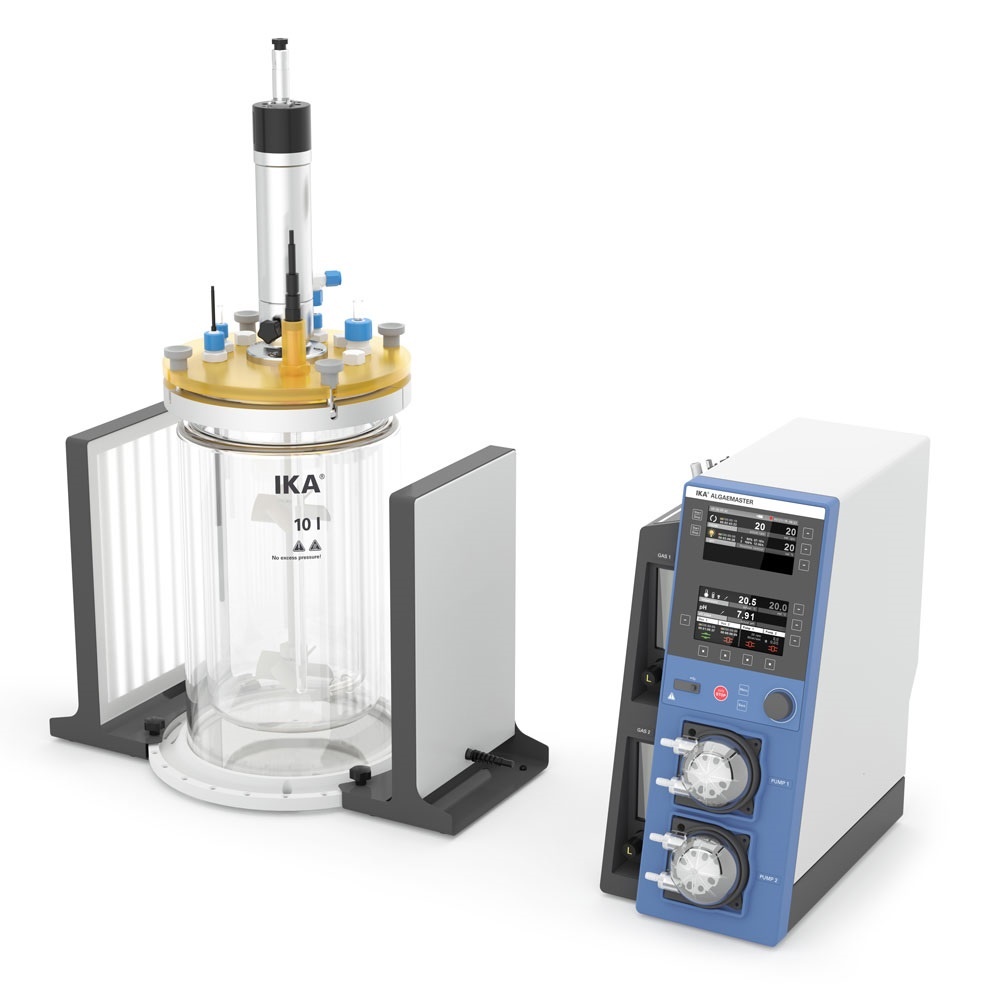

IKA Algaemaster 10 control Photo Bioreactors (0020015197)

Useable volume: 6000 - 10000 ml

Useable volume with temperature probe min.: 6000 ml

Viscosity max.: 100 mPas

Speed range: 10 - 100 rpm

Permissible ON time: 100 %

Temperature measurement resolution: 0.1 K

pH measuring range: 0 - 13 pH

Accuracy of pH measurement: 0.1 pH

pH measurement resolution: 0.01 pH

Cooling medium temperature: 4 - 60 °C

Speed deviation: 5 ±rpm

Speed display: TFT

Heat control: TFT

Connection for ext. temperature sensor: PT 100

Stirring element fastening: special output shaft

Timer: yes

Timer display: TFT

Speed control: 1 RPM steps

Type of cooling: flow

Temperature display: yes

Temperature control: PT 100

Working temperature sensor: PT 100

Working temperature display: TFT

Display for operation with ext. sensor: yes

Reversible direction of rotation: yes

pH meter interface: yes

pH value display: TFT

Dimensions (W x H x D): 800 x 1000 x 600 mm

Weight: 38 kg

Permissible ambient temperature: 5 - 40 °C

Permissible relative humidity: 80 %

Protection class according to DIN EN 60529: IP 21

RS 232 interface: yes

USB interface: yes

Voltage: 100 - 240 V

Frequency: 50/60 Hz

Power input: 375 W
