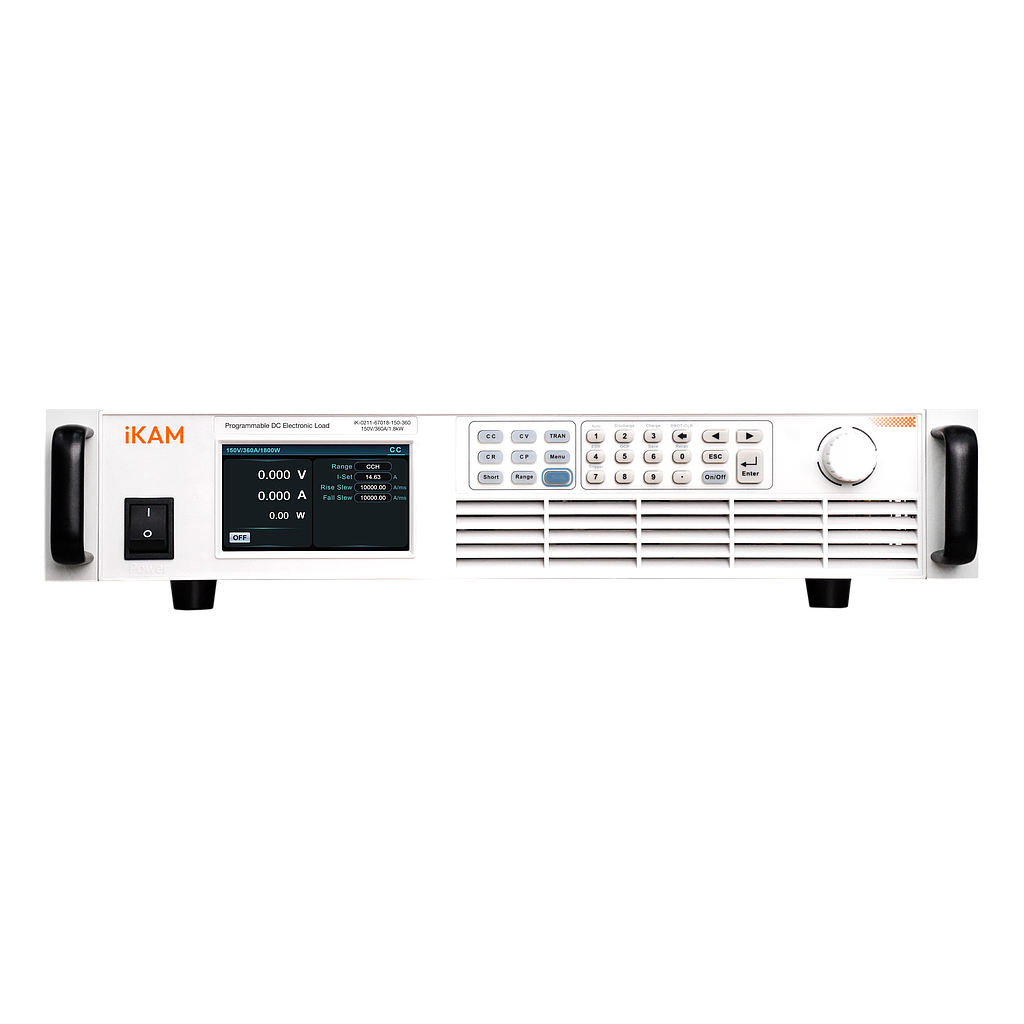

iKAM iK-6111E High Speed Programmable DC Electronic Load (150V/4200A/21kW)

Voltage: 150V

Current: 4200A

Power: 21000W

Min. Operating Voltage: 0.7V

CV Mode:

Range: 0~15V/ 0~75V/ 0~150V

Setting Resolution: 1mV/ 1mV/ 10mV

Setting Accuracy (23±5℃): 0.05%+0.05%F.S.

Readback Accuracy(23±5℃): 0.05%+0.05%F.S.

CC Mode:

Range: 0~42A/ 0~420A/ 0~4200A

Setting Resolution: 0.1mA/ 1mA/ 10mA

Setting Accuracy (23±5℃): 0.1%+1%F.S./ 0.1%+0.1%F.S.

Readback Resolution: 10μA/ 0.1mA/ 1mA

Readback Accuracy(23±5℃): 0.1%+1%F.S./ 0.1%+0.1%F.S.

CP Mode:

Range: 0~210W/ 0~2100W/ 0~21000W

Setting Accuracy (23±5℃): 0.2%+0.2%F.S.

Readback Accuracy(23±5℃): 0.1%+0.1%F.S.

CCD Mode:

T1&T2: 0.005~60000ms

Resolution: 1μs

Accuracy (23±5℃): 10μs+100ppm

Min. Rise Time: 6μs

Others:

Input Impedance: 0.21MΩ(Typical)

Protection Function: OVP/OCP/OPP/OTP/RV

Interface: USB(Waveform import)/LAN/RS232/CAN

Communication Protocol: Modbus-RTU standard protocol, CANOPEN standard protocol, SCPI standard protocol

Communication Response Time: ≤5ms

AC Input: AC 100V~240V, current ＜ 0.5A, frequency 47Hz~63Hz

Temperature: Operating temperature: 0℃~40℃, storage temperature: -20℃~60℃

Operating Environment: Altitude <2000m, relative humidity: 5%~90%RH(non-condensing), atmospheric pressure: 80~110kPa

Dimension: 88.0(H)*482.0(W)with handle*664.5(D)mm
