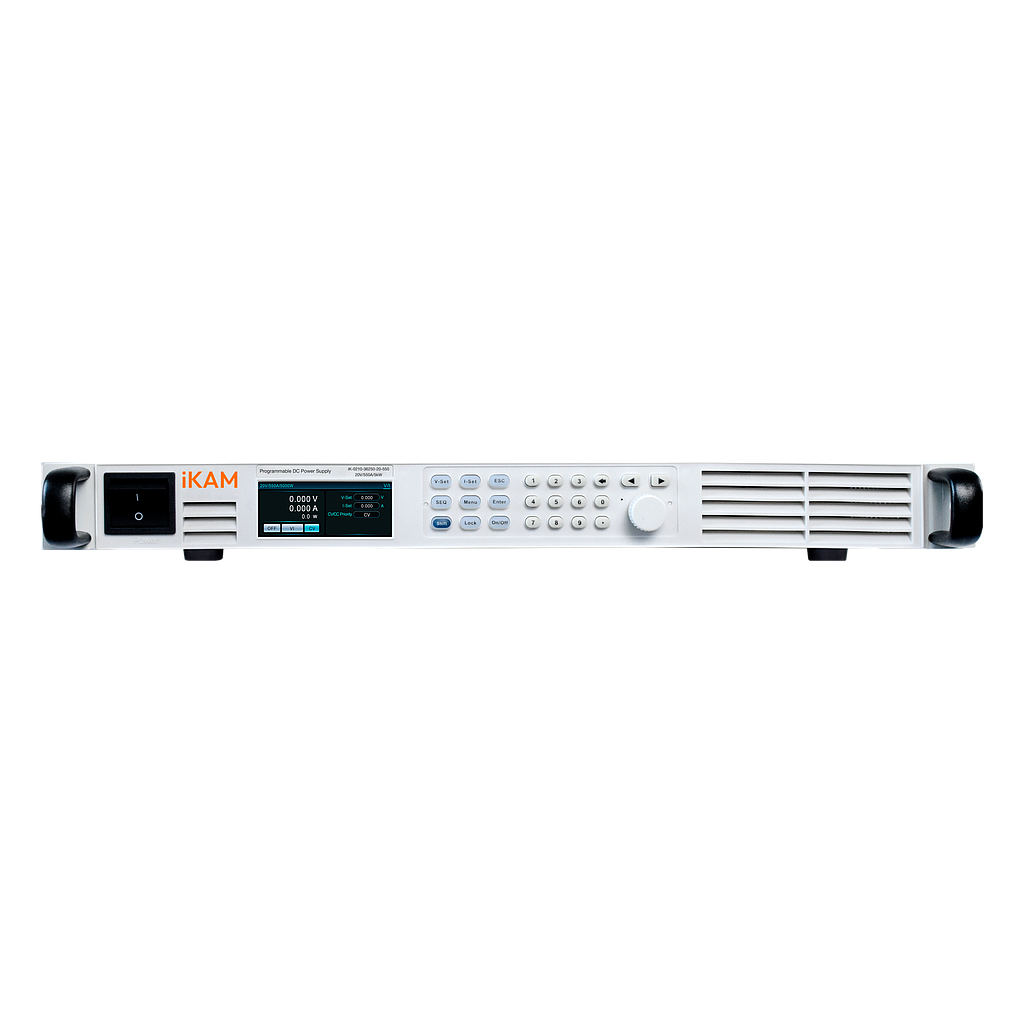

iKAM iK-6150D3 Wide Range Programmable DC Power Supply (80V/60A/1000W)

Rated Value:

Voltage: 0~80V

Current: 0~60A

Power: 1000W

Channels: 1CH

CV Mode:

Range: 0~80V

Setting Resolution: 1mV

Setting Accuracy (23±5°C): ≤0.03%+0.02%F.S.

Voltage Ripple(20Hz-20MHz): ≤10mVrms

: ≤50mVp-p

CC Mode:

Range: 0~60A

Setting Resolution: 1mA

Setting Accuracy (23±5°C): ≤0.1%+0.1%F.S.

Current Ripple(20Hz-5MHz): ≤60mArms

CP Mode:

Range: 1000W

Setting Resolution: 0.1W

Setting Accuracy (23±5°C): 0.5%F.S.

Voltage Measurement:

Range: 0~80V

Readback Resolution: 1mV

Readback Accuracy (23±5°C): ≤0.03%+0.02%F.S.

Current Measurement:

Range: 0~60A

Readback Resolution: 1mA

Readback Accuracy (23±5°C): ≤0.1%+0.1%F.S.

Line Regulation:

Voltage: <0.02%F.S.

Current: <0.03%F.S.

Load Regulation:

Voltage: <0.03%F.S.

Current: <0.05%F.S.

Dynamic Characteristics:

Voltage Rise Time(no load): ≤10ms

Voltage Rise Time(full load): ≤10ms

Voltage Fall Time(no load): ≤20ms

Voltage Fall Time(full load): ≤10ms

Transient Recovery Time: The output voltage recovering within 0.75% of the rated output voltage value（10%~90% load)≤1ms

Others:

Isolation(Output to Ground): 500V DC

Max. Efficiency: 0.91

Power Factor: 0.99

Interface: LAN/RS232/RS485/CAN

Communication Response Time: ≤5ms

AC Input: 220V AC±10%,47Hz~63Hz,≤10A

Temperature: Operating temperature: 0°C~40°C, storage temperature: -20°C~70°C

Operating Environment: Altitude <2000m, relative humidity: 5%~90%RH(non-condensing), atmospheric pressure: 80~110kPa

Net Weight: Approx. 5kg

Dimension: 44.5(H)*214.0(W)*556.2(D)mm, with output shield
