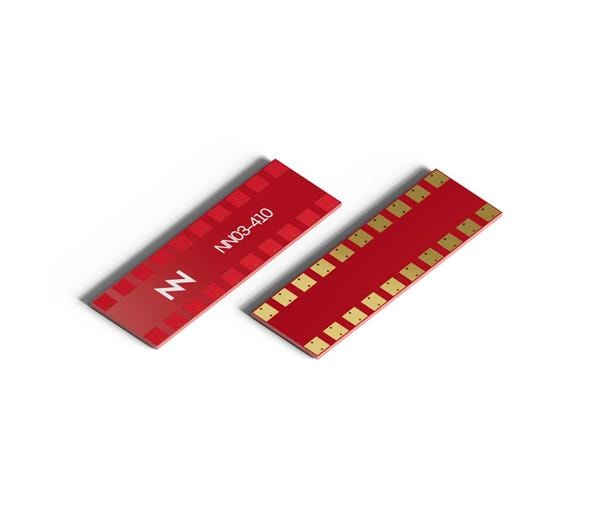

Ignion NN03-410 Chip Antenna OMNIA mXTENDTM

Gain: 0.9 dBi, 4 dBi, 3.5 dBi

VSWR: 1.5:1, 2:1, 2.6:1

Impedance: 50 Ohms

Application: Automotive Telematics, Asset Tracking and Logistics

Polarization: Linear

Mounting Style: PCB Mount

Frequency Range: 790 MHz to 960 MHz, 1.561 GHz to 1.606 GHz, 2.4 GHz to 2.5 GHz

Mechanical Style: Chip

Maximum Frequency: 2.5 GHz

Minimum Frequency: 790 MHz

Termination Style: Solder

Protocol - GPS, GLONASS: BEIDOU, Galileo, GLONASS, GPS,

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 4G/5G, Cellular(NBIoT, LTE)
