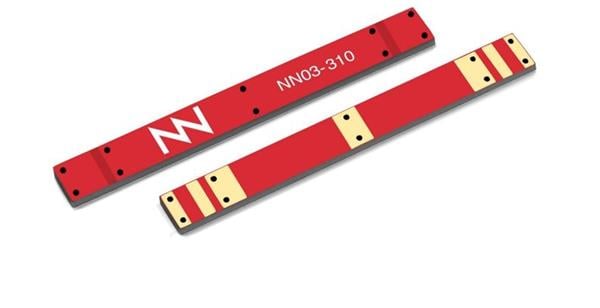

Ignion NN03-310 Passive Antenna 400-8000MHz

Gain: 1.1 dBi, 2.4 dBi, 1.5 dBi, 2.7 dBi, 3.8 dBi, 1.9 dBi, 2 dBi, 0.4 dBi, 1.9 dBi, 0.9 dBi, 2.4 dBi

VSWR: 3:1

Style: Rectangular

Width: 3 mm

Height: 1 mm

Length: 30 mm

Impedance: 50 Ohms

Application: Tracking Devices, IoT Sensors, IoT Cellular/ISM Modules, Mobile Devices

Polarization: Linear

Mounting Style: PCB Mount

Electrical Type: Monopole

Number of Bands: 16 Band

Center Frequency: 829 MHz, 2200 MHz, 829 MHz, 2200 MHz, 3600 MHz, 892 MHz, 1940 MHz, 1561 MHz, 1575 MHz, 1602 MHz, 892 MHz, 1850 MHz, 1561 MHz, 1575 MHz, 1602 MHz, 2450 MHz

Mechanical Style: Chip

Maximum Frequency: 8 GHz

Minimum Frequency: 400 MHz

Termination Style: SMD/SMT

Protocol - Sub GHz: IoT, ISM

Protocol - GPS, GLONASS: GNSS

Protocol - WiFi - 802.11: WiFi 6E

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G/5G, Cellular (NBIoT, LTE), GSM, UMTS

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth
