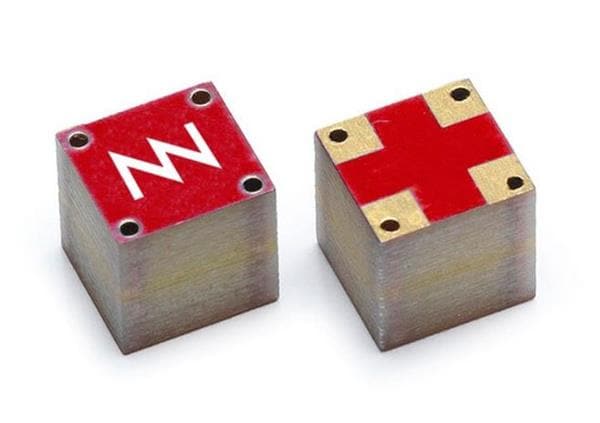

Ignion NN02-250 Passive Antenna CUBE mXTENDTM please refer here for design assistance at http://ignion.io/fast-track-project/

Gain: 0.7 dBi, 2 dBi

VSWR: 3:1

Style: Rectangular

Width: 5 mm

Height: 5 mm

Length: 5 mm

Impedance: 50 Ohms

Application: Tracking Devices, IoT Sensors, IoT Cellular/ISM Modules, Mobile Devices

Polarization: Linear

Mounting Style: PCB Mount

Electrical Type: Monopole

Number of Bands: 4 Band

Center Frequency: 892 MHz, 1.94 GHz, 892 MHz, 2.2 GHz

Mechanical Style: Chip

Maximum Frequency: 2.69 GHz

Minimum Frequency: 824 MHz

Termination Style: SMD/SMT

Moisture Sensitive: Yes

Protocol - Sub GHz: IoT

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS
