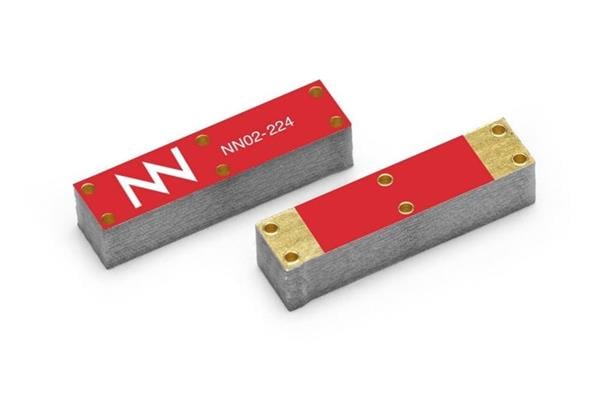

Ignion NN02-224 Passive Antenna 698-8000MHz

Gain: 1.8 dBi, 1.9 dBi, 2.1 dBi, 2.1 dBi, 2.2 dBi, 2.9 dbi, 3 dBi, 3.3 dBi, 4.2 dBi, 2.9 dBi, 3.1 dBi

VSWR: 3:1

Style: Rectangular

Width: 3 mm

Height: 2.4 mm

Length: 12 mm

Impedance: 50 Ohms

Application: Tracking Devices, IoT Sensors, IoT Cellular/ISM Modules, Mobile Devices

Polarization: Linear

Mounting Style: PCB Mount

Electrical Type: Monopole

Number of Bands: 10 Band

Center Frequency: 892 MHz, 895.5 MHz, 1561 MHz, 1575 MHz, 1602 MHz, 1710 MHz, 2200 MHz, 2450 MHz, 5387.5 MHz

Mechanical Style: Chip

Maximum Frequency: 8 GHz

Minimum Frequency: 698 MHz

Termination Style: SMD/SMT

Moisture Sensitive: Yes

Protocol - Sub GHz: IoT, ISM

Protocol - GPS, GLONASS: GNSS

Protocol - WiFi - 802.11: Dual WiFi

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G/5G, Cellular (NBIoT, LTE), GSM, UMTS

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth
