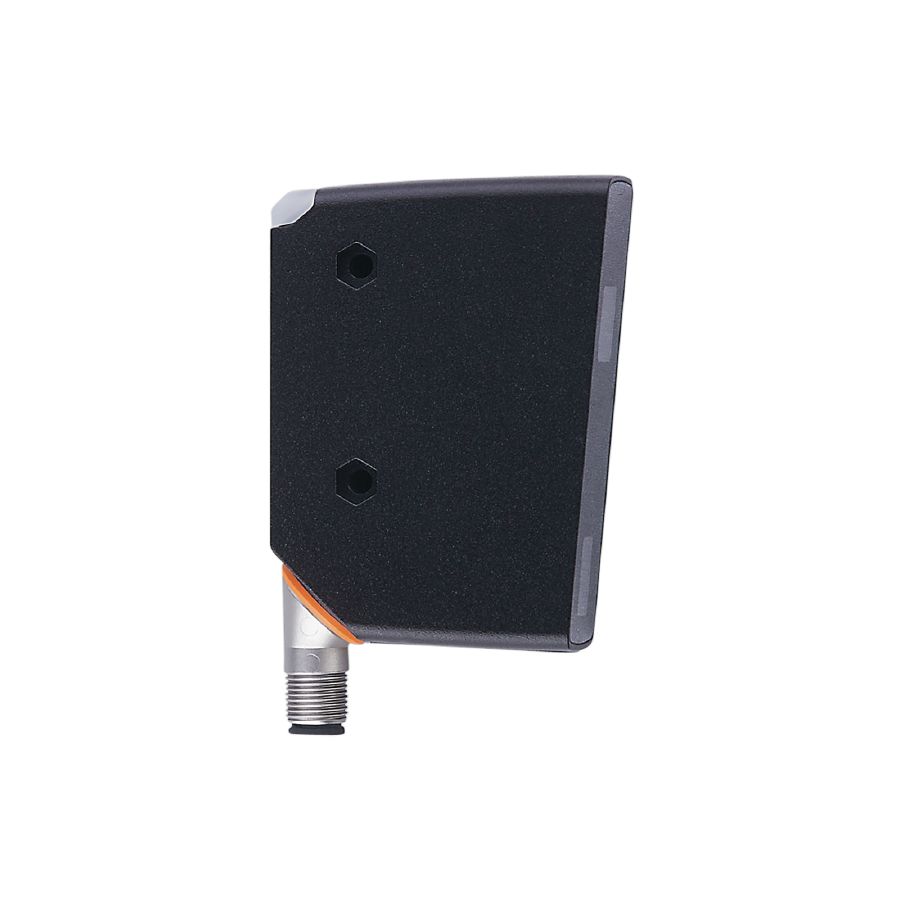

IFM Electronic OPD100 Profile Sensor (150...300mm; 650nm)

Operating voltage [V]: 10...30 DC; (supply class 2 to cULus)

Current consumption [mA]: < 200; (10 V)

Protection class: III

Reverse polarity protection: yes

Power-on delay time [s]: 2

Type of light: red light

Wave length [nm]: 650

Number of inputs and outputs: Number of digital inputs: 1; Number of digital outputs: 2

Trigger: external

Number of digital inputs: 1

Number of digital outputs: 2

Output function: 2 x normally open / normally closed; (parameterisable)

Max. current load per output [mA]: 100

Type of short-circuit protection: pulsed

Overload protection: yes

Measuring distance (Z-direction) [mm]: 150...300

Width of the measuring range (X-direction) at min. measuring distance [mm]: 45; (distance = 150mm)

Width of the measuring range (X-direction) at max. measuring distance [mm]: 90; (distance = 300mm)

Sampling rate [Hz]: 5

Number of profiles which can be stored: 1

Number of regions of interest: 1

Communication interface: IO-Link

Transmission type: COM3 (230,4 kBaud)

IO-Link revision: 1.1

SIO mode: yes

Required master port type: A

Min. process cycle time [ms]: 2.3

Ambient temperature [°C]: -10...55

Storage temperature [°C]: -40...60

Protection: IP 65

Max. immunity to extraneous light [klx]: 20

Weight [g]: 535.8

Dimensions [mm]: 88 x 65 x 28.5

Display: switching status: 1 x LED, yellow; Display operation 1 x LED, green
