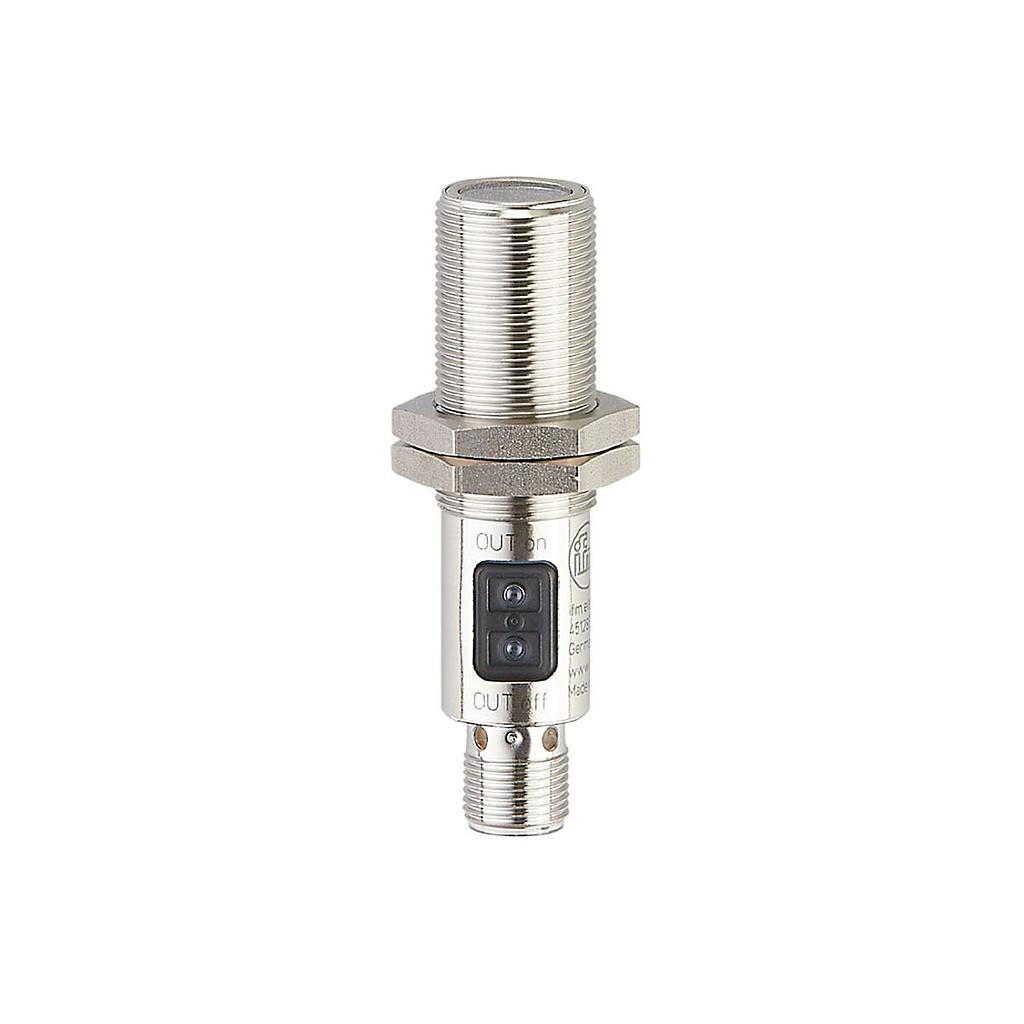

IFM Electronic OGT500 Diffuse Reflection Sensor With Background Suppression (2...800mm; 624nm)

Light type: Red light

Operating voltage [V]: 10...36 DC ("Class 2 supply" for cULus)

Current consumption [mA]: 25

Protection class: II

Reverse polarity protection: Yes

Wave length [nm]: 624

Electrical design: PNP

Output function: Light/Dark mode; (programmable)

Max. voltage drop switching output DC [V]: 2.5

Permanent current rating of switching output DC [mA]: 150; (200 (...60 °C))

Switching frequency DC [Hz]: 2000

Default setting: Light-on mode

Short-circuit protection: Yes

Short-circuit protection type: Pulsed

Overload protection: Yes

Sensing range [mm]: 2...800; (white paper 200 x 200 mm 90% remission)

Range adjustment: Yes

Maximum light spot diameter [mm]: 66

Reference light spot size: At maximum range

End value of monitoring range [mm]: 150...800

Ambient temperature [°C]: -25...80

Degree of protection: IP67

Weight [g]: 58.4

Dimensions [mm]: M18 x 1 / L = 72

Display: Switching status 1 x LED, yellow

Item supplied: Lock nut: 2 x

Connection: Connector: 1 x M12; Coding: A
