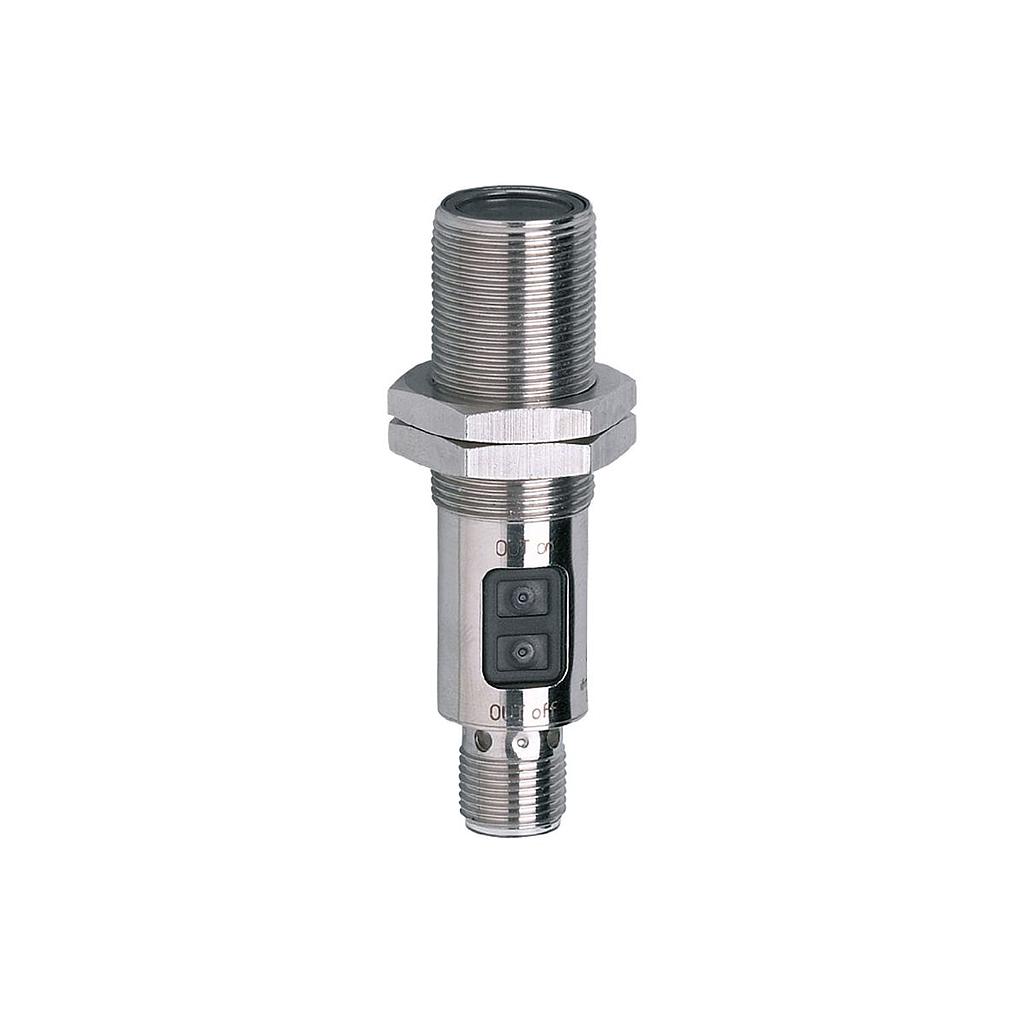

IFM Electronic OGT300 OGT-FPKG/US100 Diffuse Reflection Sensor (2~800mm)

Type of light: red light

Housing: threaded type

Function principle: Diffuse reflection sensor

Operating voltage [V]: 10...30 DC

Current consumption [mA]: 25

Protection class: II

Reverse polarity protection: yes

Electrical design: PNP

Output function: light-on/dark-on mode; (programmable)

Max. voltage drop switching output DC [V]: 2.5

Continuous current rating of switching output DC [mA]: 150; (200 (...60 °C))

Switching frequency DC [Hz]: 2000

Short-circuit protection: yes

Short-circuit protection type: Pulsed

Overload protection: yes

Detection range [mm]: 2...800; (white paper 200 x 200 mm 90 % remission)

Adjustment range: yes

Light spot diameter max. [mm]: 66

Reference light spot size: at maximum range

End value of the sensing range [mm]: 150...800

Ambient temperature [°C]: -25...60

Protection rating: IP65; IP67; IP68; IP69K

EMC: EN 60947-5-2

MTTF [years]: 473

Weight [g]: 60.9

Dimensions [mm]: M18 x 1 / L = 72

Thread design: M18 x 1

Material: stainless steel (1.4404/316L); PA; LCP; EPDM; TPU

Lens material: PMMA

Lens alignment: side lens

Switching status indicator: 1 x LED, yellow

Teach function: yes

Electronic lock: yes

Connection: Connector: 1 x M12; coding: A

Accessories: 2 lock nuts
