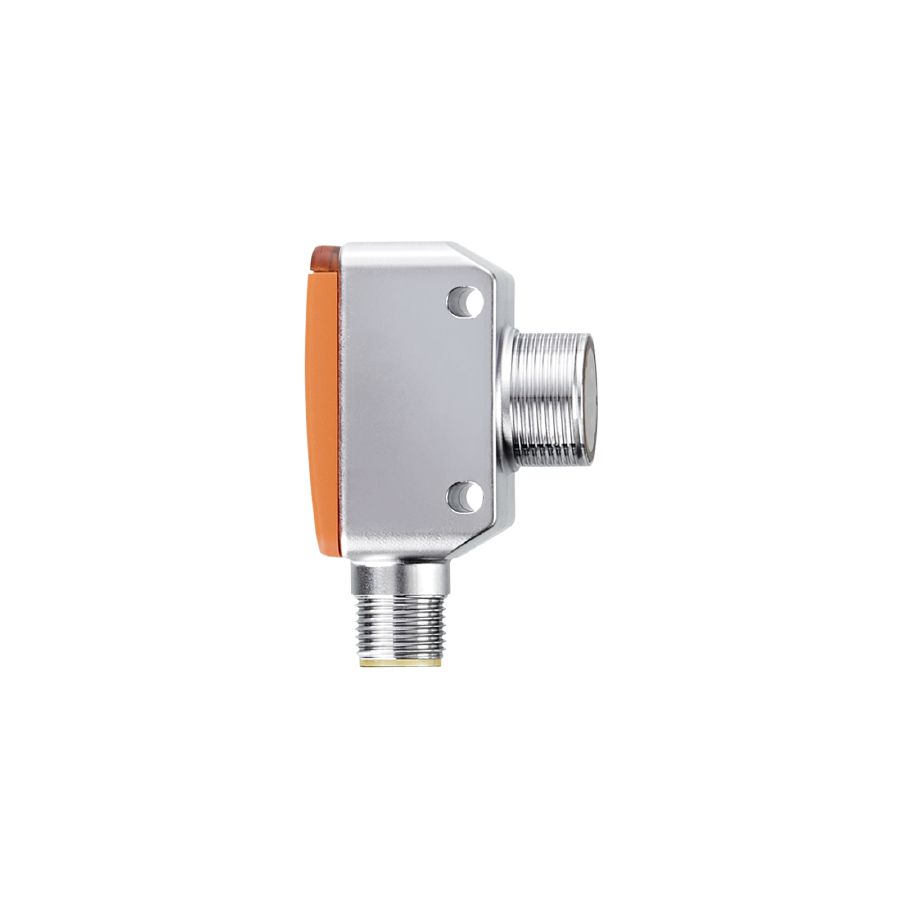

IFM Electronic OGS381 Through-Beam Sensor Transmitter (15m; 860nm)

Type of light: infrared light

Housing: rectangular

Function principle: Through-beam sensor

Operating voltage [V]: 10...30 DC

Rated insulation voltage [V]: 32

Current consumption [mA]: 17

Protection class: III

Reverse polarity protection: yes

Type of light: infrared light

Wave length [nm]: 860

Transmitter / receiver: transmitter

Range [m]: < 15

Max. light spot diameter [mm]: 200

Communication interface: IO-Link

Transmission type: COM2 (38,4 kBaud)

IO-Link revision: 1.1

SDCI standard: IEC 61131-9

Profiles: Smart Sensor: Device Identification, Device Diagnosis

SIO mode: no

Required master port type: A

Min. process cycle time [ms]: 2.5

IO-Link process data (cyclical): function: bit length; device status 4

IO-Link functions (acyclical): application specific tag; operating hours counter

Ambient temperature [°C]: -25...80

Storage temperature [°C]:: -40...80

Protection:: IP 65; IP 67; IP 68; IP 69K

Weight [g]:: 78.35

Dimensions [mm]:: 52.9 x 20 x 34.6

Thread designation: M18 x 1

Materials: 1.4542 (17-4 PH / 630); PEI

Lens material: PEI

Lens alignment: side lens

Display: operation 1 x LED, green
