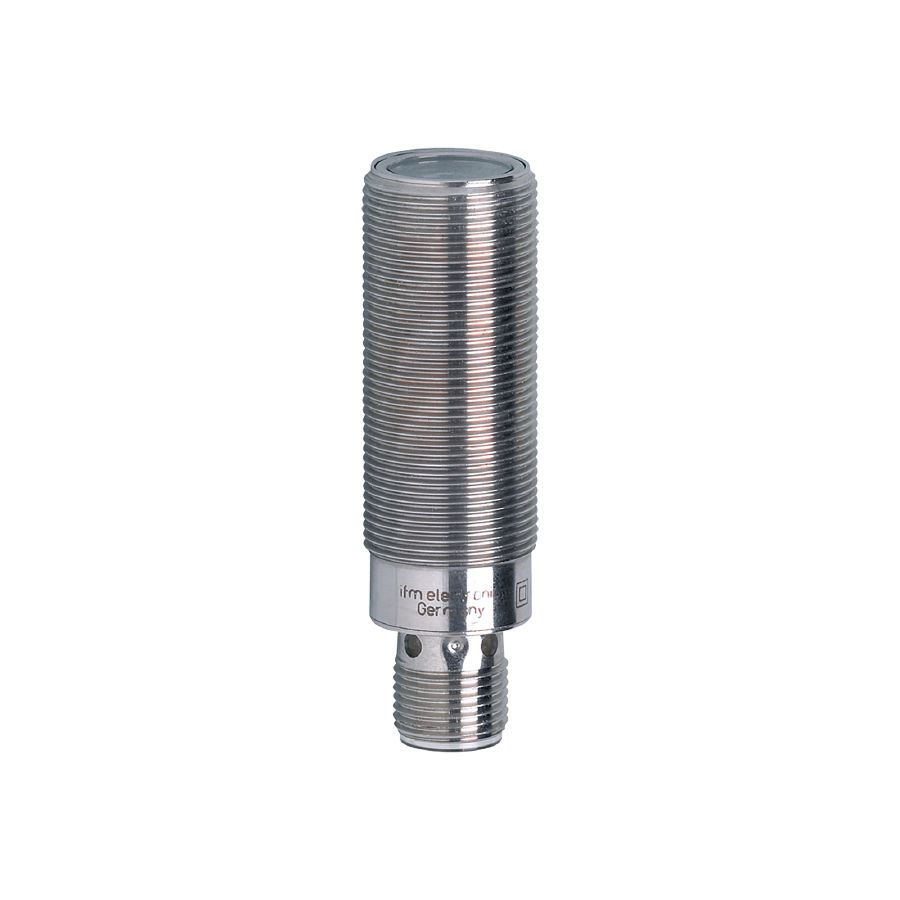

IFM Electronic OGS200 Through-Beam Sensor Transmitter (20m; 624nm)

Type of light: red light

Housing: threaded type

Function principle: Through-beam sensor

Operating voltage [V]: 10...36 DC

Current consumption [mA]: 15

Protection class: II

Reverse polarity protection: yes

Wave length [nm]: 624

Transmitter / receiver: transmitter

Range [m]: < 20

Range adjustable: no

Max. light spot diameter [mm]: 800

Ambient temperature [°C]: -25...60

Protection: IP 67

Weight [g]: 49.1

Dimensions [mm]: M18 x 1 / L = 60

Materials: housing: stainless steel (1.4404 / 316L)

Lens material: PMMA

Display: operation 1 x LED, green

Items supplied: lock nuts: 2 x

Connection: Connector: 1 x M12; coding: A
