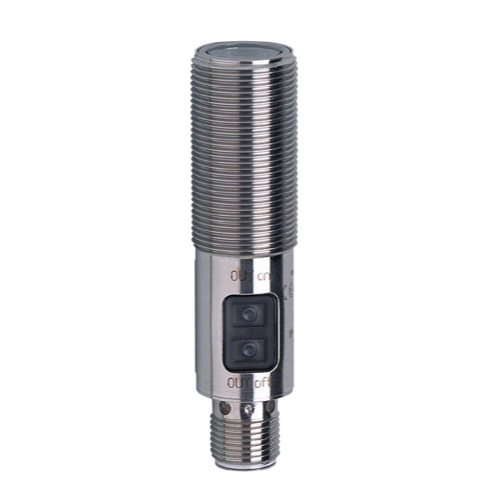

IFM Electronic OGH700 OGHLFPKG/US100 Laser Diffuse Reflection Sensor (20~200mm)

Type of light: Red light

Housing: Threaded type

Special feature: Background suppression

Function principle: Diffuse reflection sensor

Rated insulation voltage [V]: 10...30 DC

Current consumption [mA]: 15

Protection class: II

Reverse polarity protection: Yes

Type timeline: 50000

Wavelength [nm]: 655

Electrical design: PNP

Output function: light/dark mode; (programmable)

Max. voltage drop switching output DC [V]: 2.5

Permanent current rating of switching output DC [mA]: 200

Switching frequency DC [Hz]: 1000

Short-circuit protection: Yes

Short-circuit protection type: Pulsed

Overload protection: Yes

Detection range [mm]: 20...200; (white paper 200 x 200 mm 90% remission)

Detection range on white object (90 % remission) [mm]: 20...200

Detection range on grey object (18 % remission) [mm]: 20...100

Detection range on black object (6 % remission) [mm]: < 100

Adjustment range: Yes

Light spot diameter max. [mm]: 1.2

Light spot reference size: at maximum range

Background suppression available: Yes

Ambient temperature [°C]: -10...60

Protection class: IP65; IP67

EMC: EN 60947-5-2

MTTF [years]: 485

Note on laser protection: laser class: 1

*: EN / IEC60825-1:2007

*: EN / IEC60825-1:2014

*: Complies with 21 CFR 1040 except for deviations pursuant to Laser Notice No. 50, dated June 2007.

Weight [g]: 62.3

Dimensions [mm]: M18 x 1 / L = 72

Thread design: M18 x 1

Material: stainless steel (1.4404/316L); PA; LCP; EPDM; TPU

Lens material: PMMA

Switching status indicator: 1 x LED, yellow

Accessories: 2 lock nuts

Connection: Connector: 1 x M12; coding: A
