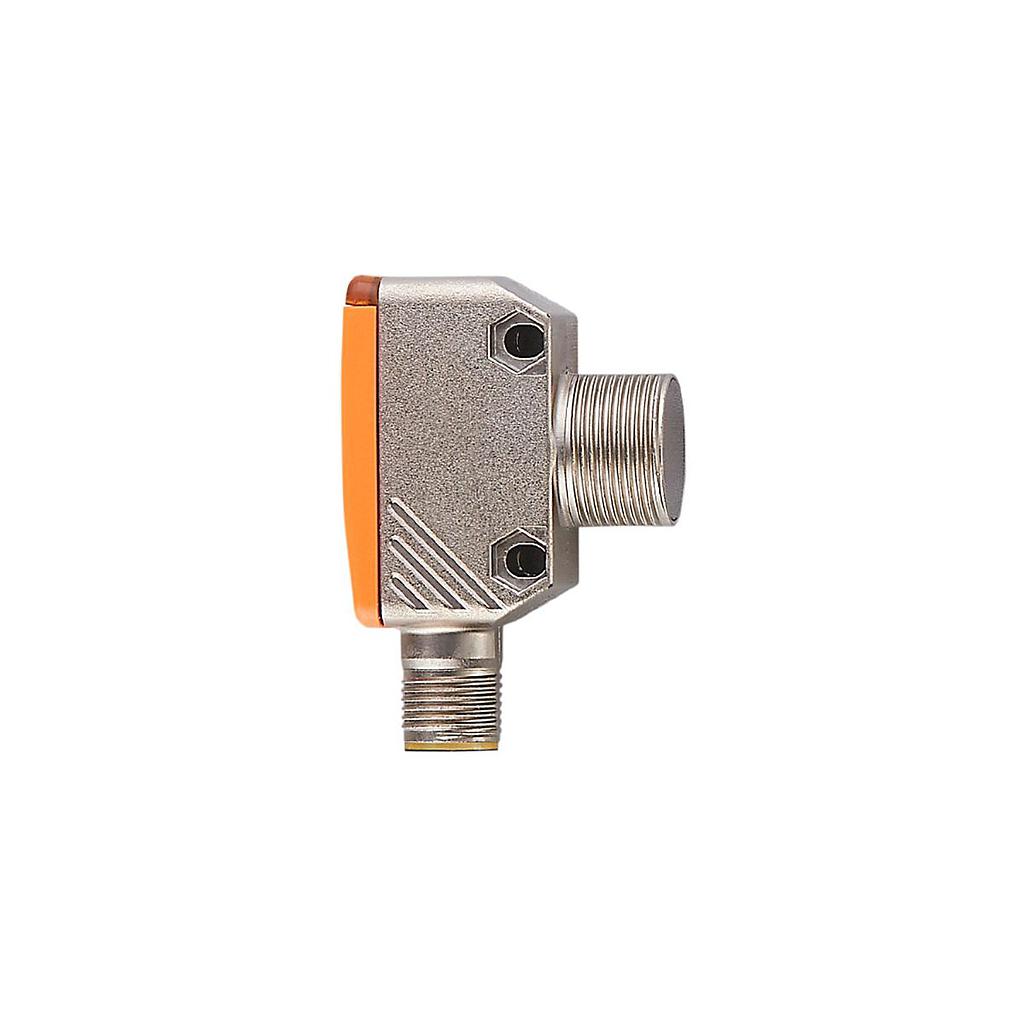

IFM Electronic OGH281 OGH-HPKG/US/CUBE/200MM Diffuse Reflection Sensor With Background Suppression (< 200mm)

Type of light: red light

Housing: rectangular with M18 thread

Special feature: Background suppression

Function principle: Diffuse reflection sensor

Operating voltage [V]: 10...30 DC; ("Class 2 supply" for cULus)

Rated insulation voltage [V]: 32

Current consumption [mA]: 25

Protection class: III

Reverse polarity protection: yes

Power-on delay time max. [ms]: 300

Wavelength [nm]: 645

Electrical design: PNP

Output function: light-on mode

Max. voltage drop switching output DC [V]: 2.5

Continuous current rating of switching output DC [mA]: 200

Switching frequency DC [Hz]: 1000

Short-circuit protection: yes

Short-circuit protection type: Pulsed

Detection range [mm]: < 200; (white paper 200 x 200 mm 90 % remission)

Range on white object (90 % remission) [mm]: < 200

Range on grey object (18 % remission) [mm]: < 200

Range on black object (6 % remission) [mm]: < 190

Adjustment range: no

Light spot diameter max. [mm]: 13

Reference light spot size: at maximum range

Background suppression available: yes

Communication interface: IO-Link

Transmission type: COM2 (38.4 kBaud)

IO-Link Revision: 1.1

SDCI standard: IEC 61131-9

Profile: Smart Sensor; Identification and Diagnosis; Process Data Channel; Teach Channel

SIO mode: yes

Required master port type: A

Minimum process cycle time [ms]: 10

IO-Link process data (cyclic): Function: Bit length

-Process value: 16

-Device status: 4

-Binary switching information: 1

IO-Link function (acyclic): specific application parameter; operating hours counter; switching cycles counter

Supported device IDs: Operating mode: Device ID | Default 1132

Ambient temperature [°C]: -25...60

Storage temperature [°C]: -40...60

Protection rating: IP65; IP67

EMC: EN 60947-5-2

MTTF [years]: 782

UL approval: TA -25...60 °C

-Enclosure: type 1

-Power supply: Class 2

-UL file number: E174191

Weight [g]: 58.5

Dimensions [mm]: 52.6 x 19.1 x 35.9

Thread design: M18 x 1

Material: diecast zinc; PEI

Lens material: PEI

Lens alignment: side lens

Switching status indicator: 1 x LED, yellow

Operating display: 1 x LED, green

Accessories: 1 lock nut

Connection: Connector: 1 x M12; coding: A
