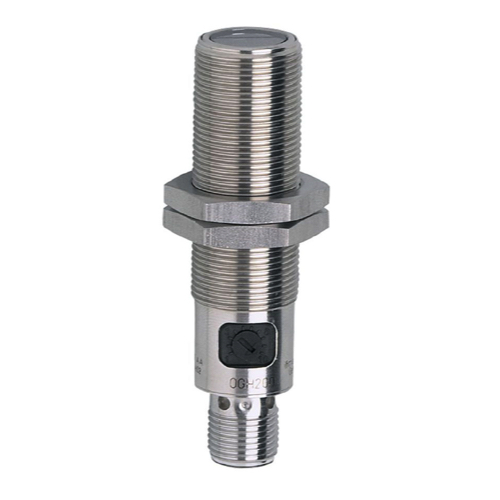

IFM Electronic OGH200 Diffuse Reflection Sensor With Background Suppression (15...250mm; 624nm)

Light type: Red light

Operating voltage [V]: 10...36 DC

Current consumption [mA]: 25

Protection class: II

Reverse polarity protection: Yes

Wave length [nm]: 624

Electrical design: PNP

Output function: Light-on mode

Max. voltage drop switching output DC [V]: 2.5

Permanent current rating of switching output DC [mA]: 200

Switching frequency DC [Hz]: 1000

Short-circuit protection: Yes

Short-circuit protection type: Pulsed

Overload protection: Yes

Sensing range [mm]: 15...250; (white paper 200 x 200 mm 90% remission)

Sensing range on white object (90% remission) [mm]: 15...250

Sensing range on gray object (18% remission) [mm]: 15...230

Sensing range on black object (6% remission) [mm]: 15...160

Range adjustment: Yes

Maximum light spot diameter [mm]: 21

Reference light spot size: Range

Background suppression available: Yes

Ambient temperature [°C]: -25...60

Degree of protection: IP65

Weight [g]: 53.1

Dimensions [mm]: M18 x 1 / L = 72

Lens alignment: Lateral lens

Display: Switching status 1 x LED, yellow

Operating element: Potentiometer

Accessories included: 2 lock nuts

Connection: Connector: 1 x M12; Coding: A
