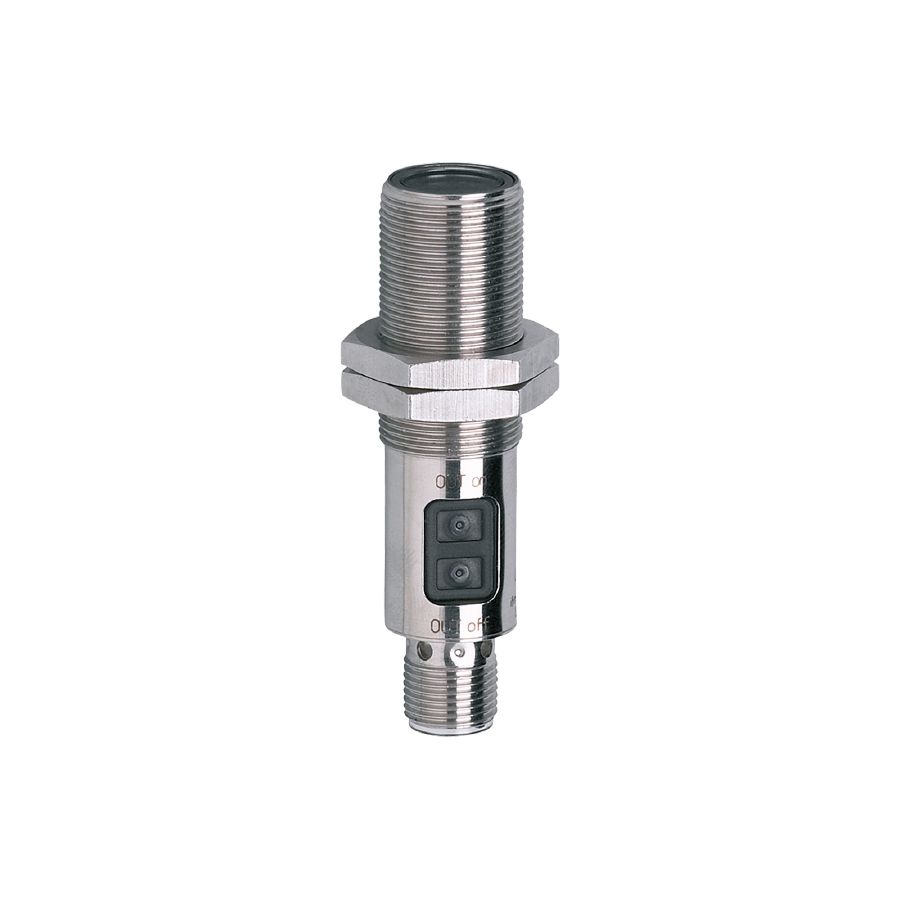

IFM Electronic OGE500 Through-Beam Sensor Receiver (25m; 624nm)

Type of light: red light

Housing: threaded type

Function principle: Through-beam sensor

Operating voltage [V]: 10...36 DC

Current consumption [mA]: 11

Protection class: III

Reverse polarity protection: yes

Wave length [nm]: 624

Electrical design: PNP

Output function: light-on/dark-on mode; (programmable)

Max. voltage drop switching output DC [V]: 2.5

Permanent current rating of switching output DC [mA]: 150; (200 (...60 °C))

Switching frequency DC [Hz]: 1000

Short-circuit protection: yes

Type of short-circuit protection: pulsed

Overload protection: yes

Transmitter / receiver: receiver

Range [m]: < 25

Factory setting: dark-on mode

Range adjustable: yes

Ambient temperature [°C]: -25...80

Protection: IP 67

Weight [g]:: 50

Dimensions [mm]:: M18 x 1 / L = 72

Thread designation: M18 x 1

Materials: stainless steel (1.4404 / 316L); PA; LCP; EPDM; TPU

Lens material: PMMA

Lens alignment: side lens

Display: switching status 1 x LED, yellow
