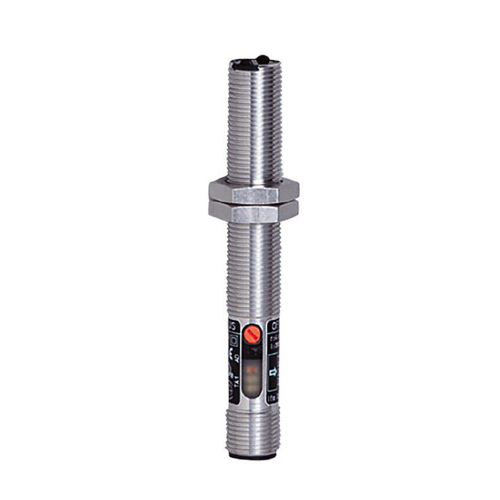

IFM Electronic OF5027 Diffuse Reflection Sensor (1...400mm; 880nm)

Light type: Infrared light

Operating voltage [V]: 10...36 DC

Current consumption [mA]: < 35

Protection class: II

Reverse polarity protection: Yes

Wave length [nm]: 880

Electrical design: PNP

Output function: Light/Dark mode; (programmable)

Max. voltage drop switching output DC [V]: 2.5

Max. voltage drop of function check output [V]: 3.5

Max. current load for function check output [mA]: 10

Switching frequency [Hz]: 320

Short-circuit protection: Yes

Short-circuit protection type: Pulsed

Overload protection: Yes

Sensing range [mm]: 1...400; (white paper 200 x 200 mm)

Range adjustment: Yes

Maximum light spot diameter [mm]: 50

Reference light spot size: Range

Background suppression available: Yes

Ambient temperature [°C]: -25...60

Degree of protection: IP65

Weight [g]: 40

Dimensions [mm]: M12 x 1 / L = 74

Switching status display: 1 x LED, yellow

Operation display: 1 x LED, green

Function display: 1 x LED, red

Accessories included: 2 lock nuts and screwdriver

Connection: Connector: 1 x M12; Coding: A
