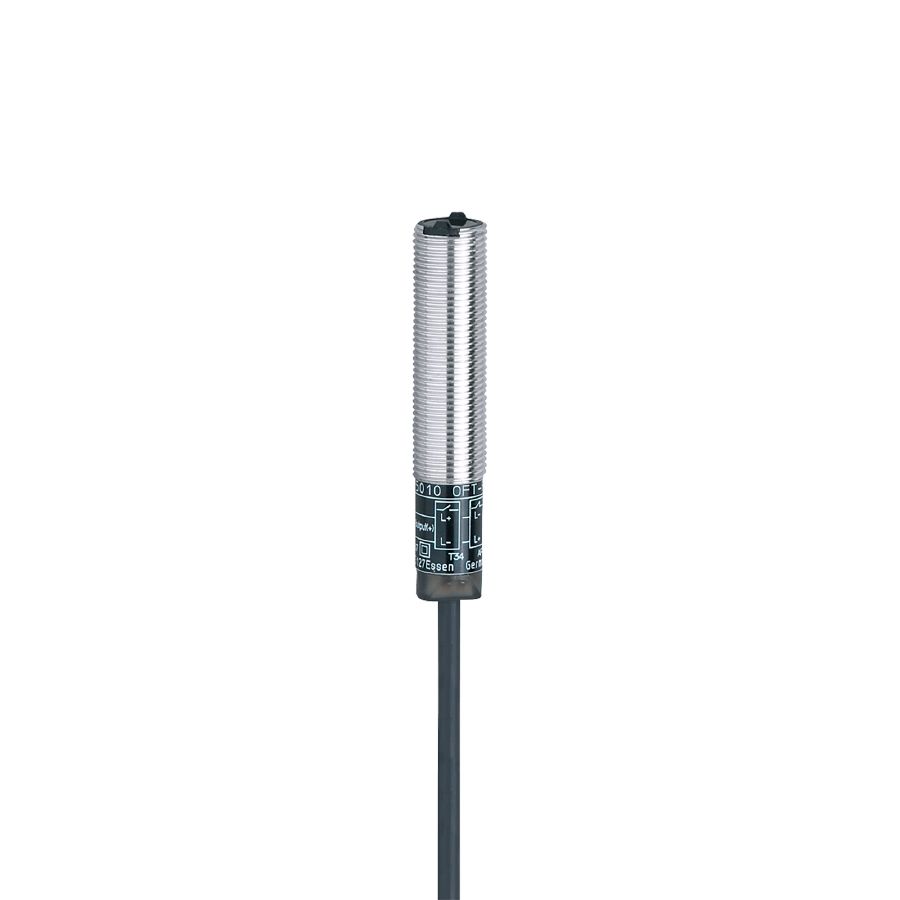

IFM Electronic OF5018 Through-Beam Sensor Transmitter (4m; 880nm)

Type of light: infrared light

Housing: threaded type

Function principle: Through-beam sensor

Operating voltage [V]: 10...36 DC

Current consumption [mA]: < 20

Protection class: II

Reverse polarity protection: yes

Wave length [nm]: 880

Short-circuit protection: pulsed

Overload protection: yes

Transmitter / receiver: transmitter

Range [m]: < 4

Max. light spot diameter [mm]: 700

Ambient temperature [°C]: -25...60

Protection: IP 67

Weight [g]: 72.3

Dimensions [mm]: M12 x 1 / L = 60

Materials: brass nickel-plated

Lens material: PMMA

Display: operation 1 x LED, green

Display: operation 1 x LED, green

Items supplied: lock nuts: 2 x

Connection: Cable: 2 m, PUR; 2 x 0.34 mm²
