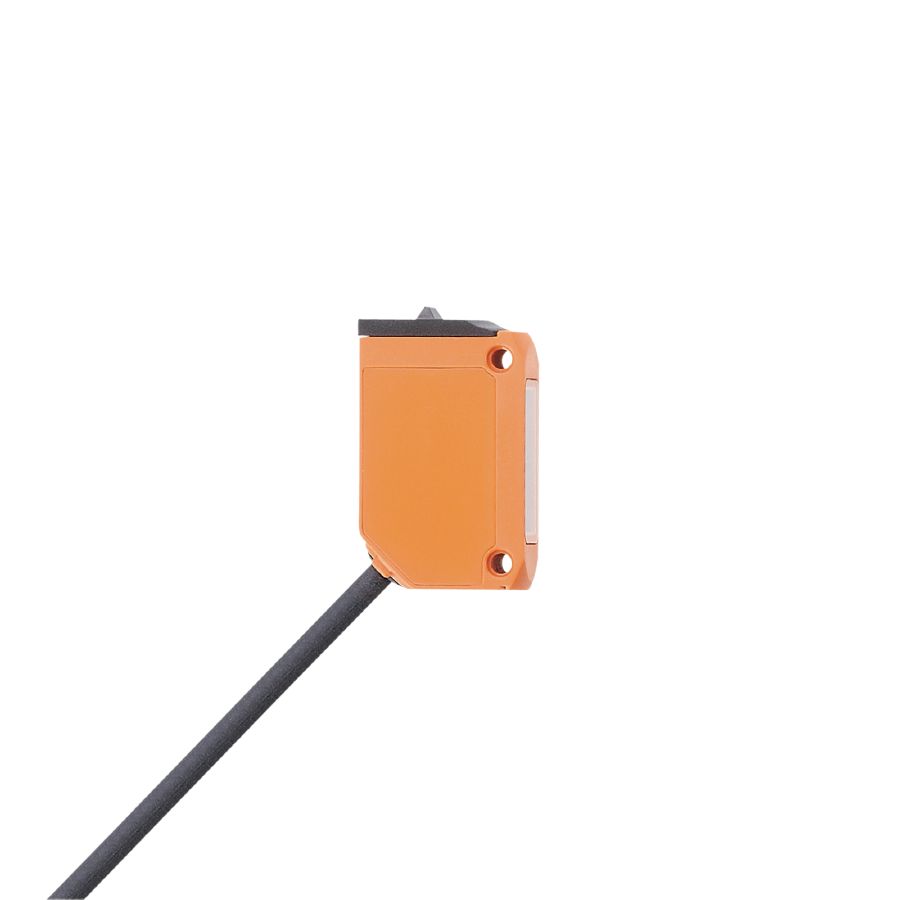

IFM Electronic O6S200 Through-Beam Sensor Transmitter (10m; 633nm)

Type of light: red light

Housing: rectangular

Function principle: Through-beam sensor

Operating voltage [V]: 10...30 DC

Current consumption [mA]: 11; ((24 V))

Protection class: III

Wave length [nm]: 633

Transmitter / receiver: transmitter

Range [m]: < 10

Max. light spot diameter [mm]: 300

Ambient temperature [°C]: -25...60

Protection: IP 65; IP 67

Weight [g]:: 56

Dimensions [mm]: 35.4 x 13 x 21

Materials: housing: ABS; PPSU; Sealing: EPDM

Lens material: PMMA

Lens alignment: side lens

Tightening torque [Nm]: 0.5

Display: operation 1 x LED, green

Connection: Cable: 2 m, PUR; 2 x 0.25 mm²
