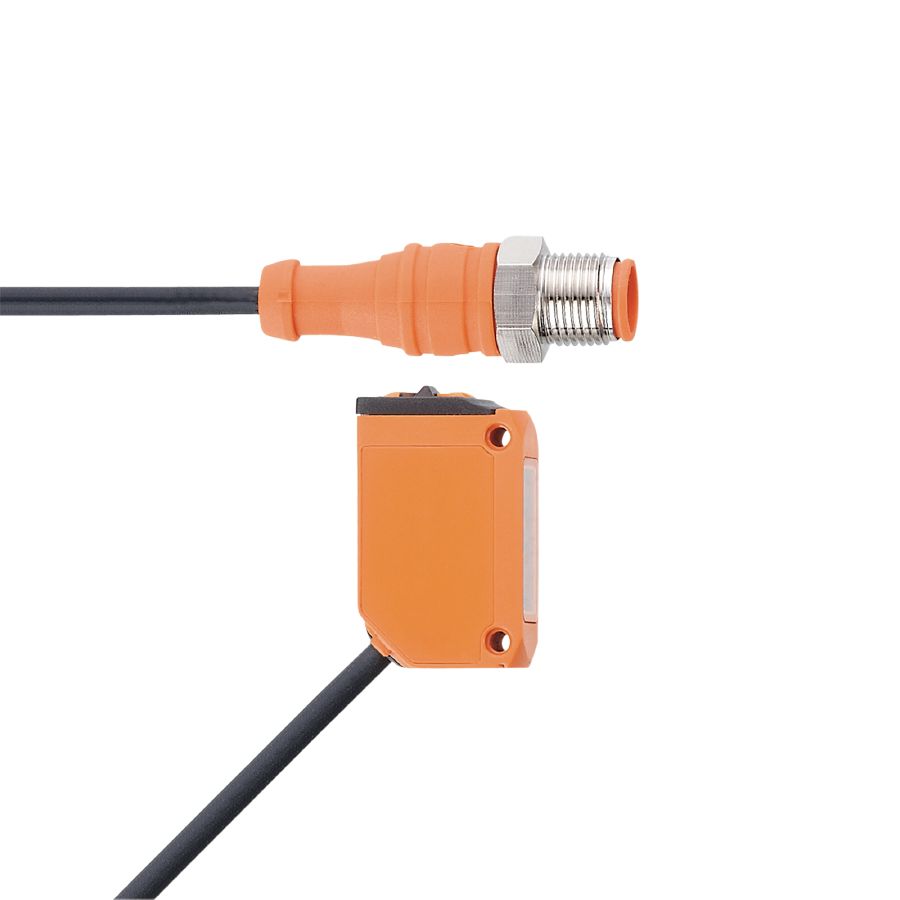

IFM Electronic O6E201 O6E-FPKG/0,30m/US Through-Beam Sensor Receiver (10m, 633nm)

Type of light: red light

Housing: rectangular

Function principle: Through-beam sensor

Operating voltage [V]: 10...30 DC

Current consumption [mA]: 7; ((24 V))

Protection class: III

Reverse polarity protection: yes

Wave length [nm]: 633

Electrical design: PNP

Output function: light-on/dark-on mode; (selectable)

Max. voltage drop switching output DC [V]: 2.5

Permanent current rating of switching output DC [mA]: 100

Switching frequency DC [Hz]: 1000

Short-circuit protection: yes

Type of short-circuit protection: pulsed

Transmitter / receiver: receiver

Range [m]: < 10

Range adjustable: yes

Ambient temperature [°C]: -25...60

Protection: IP 65; IP 67

Weight [g]: 33.2

Dimensions [mm]: 35.4 x 13 x 21

Materials: housing: ABS; PPSU; Sealing: EPDM

Lens material: PMMA

Lens alignment: side lens

Tightening torque [Nm]: 0.5

Display: switching status 1 x LED, yellow operation 1 x LED, green

Connection: Cable: 0.3 m, PUR; 3 x 0.25 mm²

Connection: Connector: 1 x M12; coding: A
