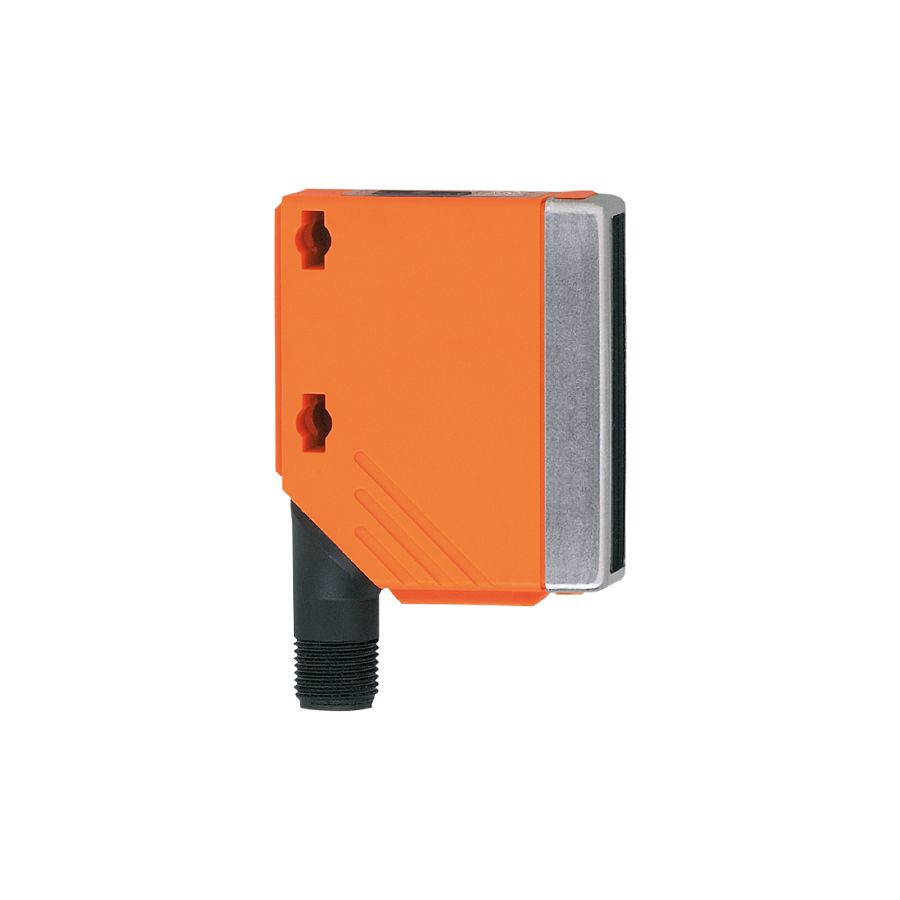

IFM Electronic O5S500 Through-Beam Sensor Transmitter (25m; 624nm)

Type of light: red light

Housing: rectangular

Function principle: Through-beam sensor

Operating voltage [V]: 10...36 DC

Current consumption [mA]: 20

Protection class: II

Reverse polarity protection: yes

Wave length [nm]: 624

Transmitter / receiver: transmitter

Range [m]: < 25

Range adjustable: no

Max. light spot diameter [mm]: 625

Ambient temperature [°C]: -25...60

Protection: IP 67

Weight [g]: 65.5

Dimensions [mm]: 56 x 18.2 x 46.8

Materials: housing: PA; bezel: stainless steel; operator interface: TPU

Lens material: PMMA

Lens alignment: side lens

Display: operation 1 x LED, green

Connection: Connector: 1 x M12; coding: A
