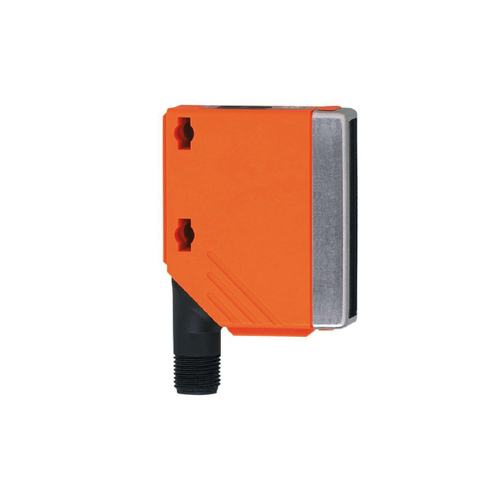

IFM Electronic O5K500 Contrast Sensor (18...22mm; 625/ 525/ 465 nm)

Light type: red light, blue light, green light

Operating voltage [V]: 10...36 DC

Current consumption [mA]: 50; (24 V)

Protection class: II

Reverse polarity protection: Yes

Wave length [nm]: 625; 525; 465

Electrical design: PNP/NPN; (automatic detection of PNP/NPN load)

Output function: light/dark mode; (programmable)

Max. voltage drop switching output DC [V]: 2.5

Permanent current rating of switching output DC [mA]: 200

Switching frequency DC [Hz]: 10000

Note on switching frequency [Hz]: for step tolerance 5

Short-circuit protection: Yes

Type of short-circuit protection: Pulse

Overload protection: Yes

Detection range [mm]: 18...22

Max. light spot width [mm]: 1.5

Max. light spot height [mm]: 5

Response time [s]: < 0.05

Ambient temperature [°C]: -25...60

Protection: IP67

Weight: 79.5 g

Dimensions [mm]: 56 x 18.2 x 46.8

Lens alignment: side lens

Switching status display: 1 x LED, yellow

Teach-in function: Yes

Electrical lock: Yes

Connection: Connector: 1 x M12; coding: A
