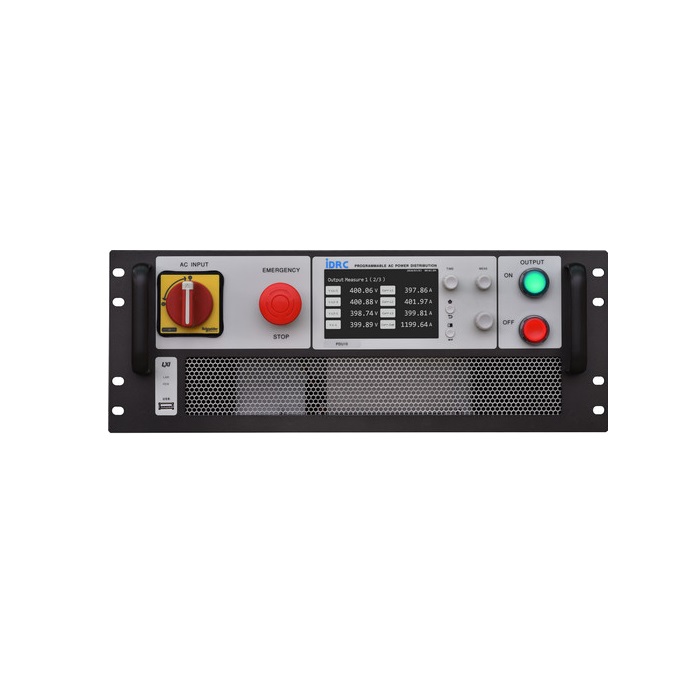

iDRC PDU10 Programmable Power Distribution Unit (1~10 units power)

Numbers of unit power ON: 1~10

Input & Output Specification

Voltage range: 180~460VAC

Nominal voltage:

15kW : 200 / 208 / 220 / 380 / 400 / 415VAC

18kW : 380 / 400 / 415VAC

Phase/Wires: 3-phase / 3 wires

Frequency range: 45Hz ~ 65Hz

5kW / 10kW / 15kW type (at 180V 3-phase)

Maximum Current: 600A / Phase

Maximum Power: 180kVA

6kW / 12kW / 18kW type (at 340V 3-phase)

Maximum Current: 400A / Phase

Maximum Power: 216kVA

Setting Function

Nominal voltage setting

15kW : Selectable 200 / 208 / 220 / 380 / 400 / 415VAC

18kW : Selectable 380 / 400 / 415VAC

Frequency setting: Selectable 50Hz/60Hz

Input Measuring Function

Voltage (L1, L2, L3):

Range: 600V / 300V

Resolution: 0.01V

Accuracy: +/- 0.2%

Frequency

Resolution: 0.001Hz

Accuracy: +/- 0.2%

Output Measuring Function

Current (L1, L2, L3)

Range: 600A / 300A / 60A

Resolution: 0.01A

Accuracy: +/- 0.8%

General specification

Auxiliary Power Supply:

Input voltage: 180~460VAC , Optional 480VAC for 15kW model only

Frequency: 45Hz ~ 65Hz

Power consumption: <=55W

Standby power: <=30W

Environmental Condition:

Operating environment: Indoor use

Operating temperature: 0℃ ~ 50℃

Operating humidity: 30%rh ~ 80%rh (no condensation) Max 80% RH up to 30℃ , linear decrease to 50% RH at 40℃

Storage temperature: -20℃ ~ 70℃

Storage humidity: 10%rh ~ 80%rh (no condensation)

Altitude: Up to 2000m

Withstanding voltage:

Primary - Chassis: DC2500V

Primary - Secondary: DC2500V

Secondary - Chassis: DC2500V

Physical specification

Display panel: TFT LCD Touchscreen 127mm(5" 800x480 )

Dimensions (W x H x D): 440 x 176 x 849.6 mm

Weight: 40kg

Accessories

LAN cable: 2m

RS485 cable: 1pc (AWG24-2m)
