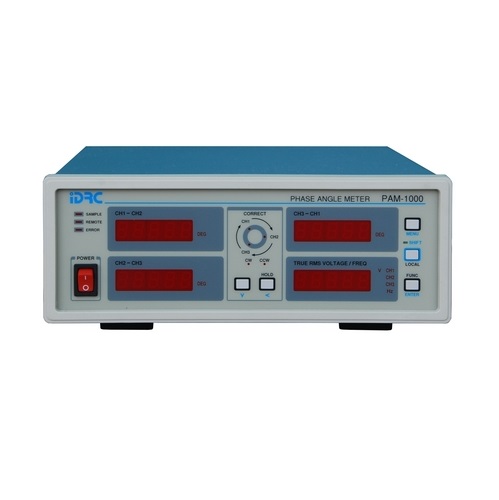

iDRC PAM-1000 Three-phase Phase Analyzer (True RMS, 600V, 10-1500Hz, ± 180°)

Phase (Degree)

Range: ± 180.00°

Resolution: 0.01°

Frequency(Hz)

Display Resolution: 5 digits

Maximum resolution: 0.001Hz of 10.000Hz to 99.999Hz

Measuring Range: 10 Hz to 1500Hz

Voltage(V)

Ranges (Auto or Manual) (4 range): 60V 150V 300V 600V RMS

Display Resolution: 5 digits

Operating Principle: Digital Calculation True RMS

Frequency Range: 10Hz to 1500Hz

Input impedance: 2 MΩ and 10 pF on all ranges

Effective input range: 20% to 120% of the range

Interface

Standard: RS-232, RS-485

Optional: GPIB

Insulation Resistance: More than 20Mohm at 500Vdc between input terminals and case between case and power line.

Operating Temperature: 5 to 50℃ (41 to 104℉)

Humidity Range: 10 to 90% (relative humidity) non-condensing.

Line Requirements: AC115V or 230V±15%，47 to 63Hz 15VA

Dimensions/Weight: 260x110x360(WxHxD)/4.2kgs net.

Option order Information: PAM-OPT-488: GPIB interface
