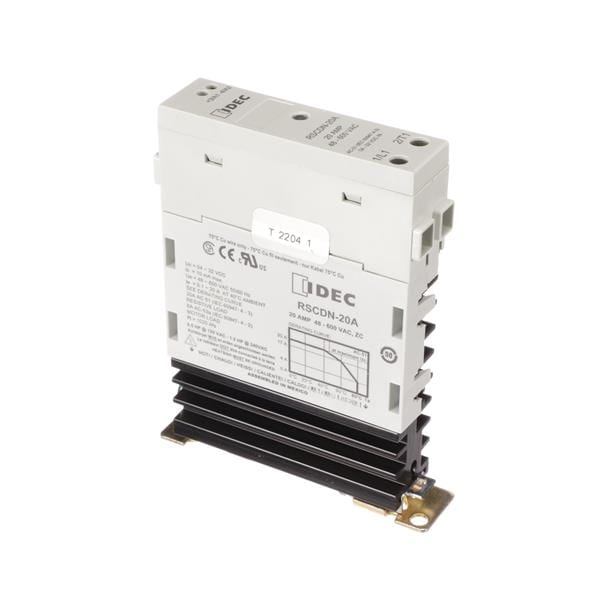

IDEC RSCDN-20A SSR Solid State Relay 20A DIN Type
ManufacturerIDEC(View more products from this manufacturer)
ModelRSCDN-20A
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 22.5 mm
Height: 88.2 mm
Length: 120.75 mm
IP Rating: IP20
Output Type: SCR
Input Current: 16 mA
Mounting Style: DIN Rail Mount
Termination Style: Screw
Relay Contact Form: 1 Form A (SPST-NO)
Load Current Rating: 20 A
Load Voltage Rating: 48 VAC to 600 VAC
Control Voltage Range: 4 VDC to 32 VDC
Maximum Operating Temperature: + 80 C
Minimum Operating Temperature: - 20 C
