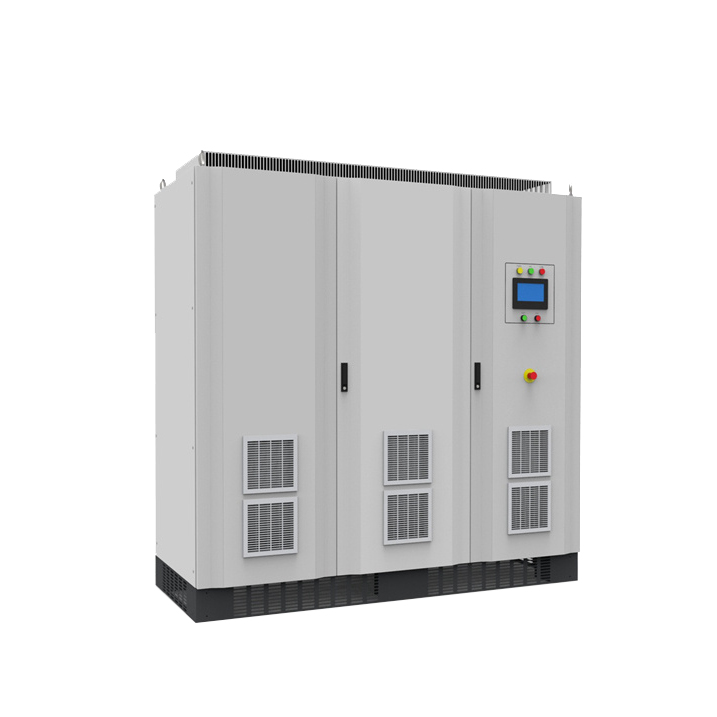

IdealTek MTP-0200-1250T High Power Switching DC Power Supply (250KW, 200V, 1250A)

Input

Connection mode: Three-Phase, Four-Wire + GND

Voltage: 380V±10%

Frequency: 50Hz/60Hz±5Hz

Output

Rated power: 250KW

Output voltage adjusting range: 0V ~ 200.00V

Output current adjusting range: 0A ~ 1250.0A

Ripple (Vr.m.s.): ≤0.5% F.S

Response time: ≤20ms (measured @ 10%-90% resistive loading)

Efficiency: ≥88% (measured @ 80%-100% resistive loading)

Setting and display

Control mode: RS485 communication interface, In line with MODBUS-RTU standard.

Display mode: Touch screen display

Protection and Monitoring functions: OVP, OCP. OTP, Output short-circuit protection, Automatic voltage compensation protection

Noise: ≤80dB

Protection degree: IP20

Cooling method: Forced air cooling

Insulation resistance: ≥20MΩ

Grounding inductance resistance: ≤100mΩ

Working conditions: 0°C～45°C, 10%～90% (non-condensing)
