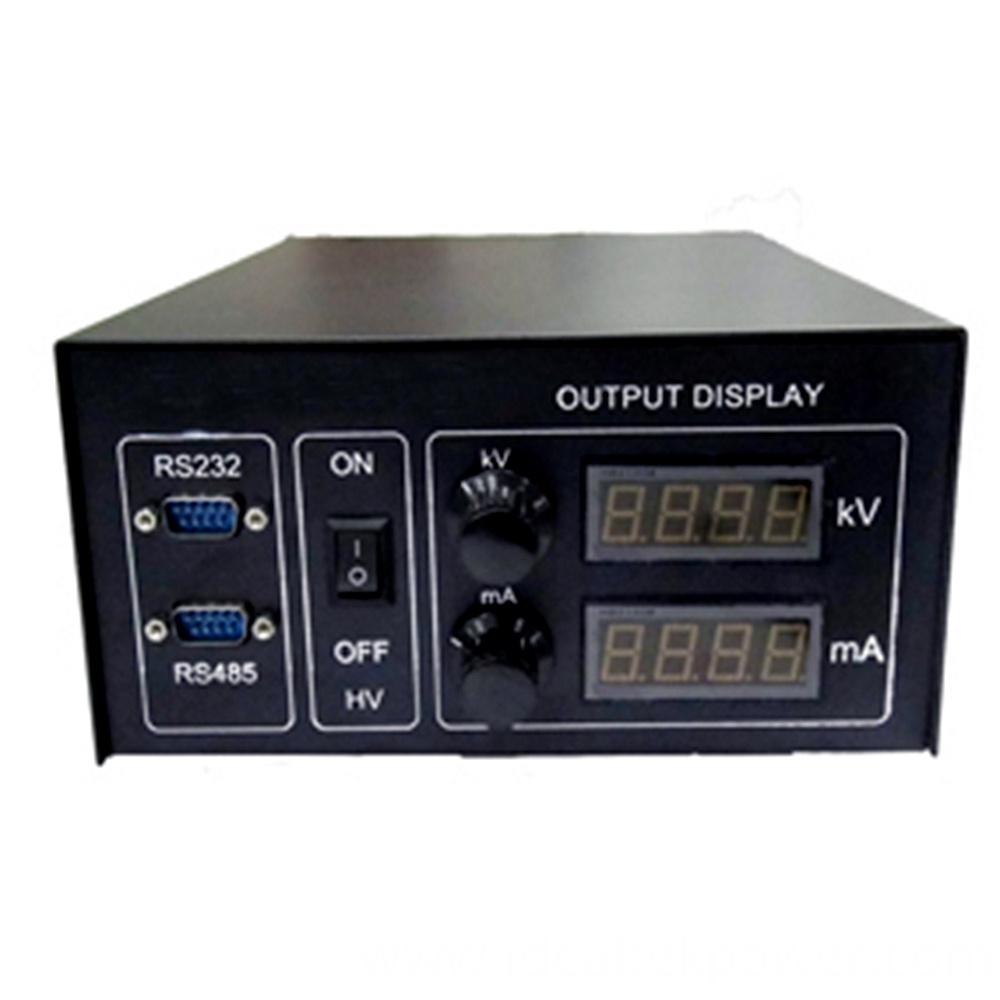

IdealTek LTP-220VAC-(N/P)1KW-2KV High Voltage Power Supply (1KW, 2KV, 500mA)

Input

Voltage: Single-Phase 220V±10%

Frequency: 50Hz/60Hz

Output

Rated power: 1KW

Output voltage: 2KV

Output current: 500mA

Ripple (Vr.m.s.): ≤0.1%@ rated output

Efficiency: ≥85%

Setting and display

Control mode: DB9 Analog port and RS485 communication port

Display mode: 4/1/2 LED digital display

Protection and Monitoring functions: Load discharging protection, Short-circuit protection, Over current protection, Over voltage protection

Noise: ≤55dB

Protection degree: IP20

Cooling method: Forced air cooling

Working conditions: 10°C～40°C, 10%～90% (non-condensing)

Storage conditions: -20°C～60°C, 10%～90% (non-condensing)

Size: 200*100*300 mm
