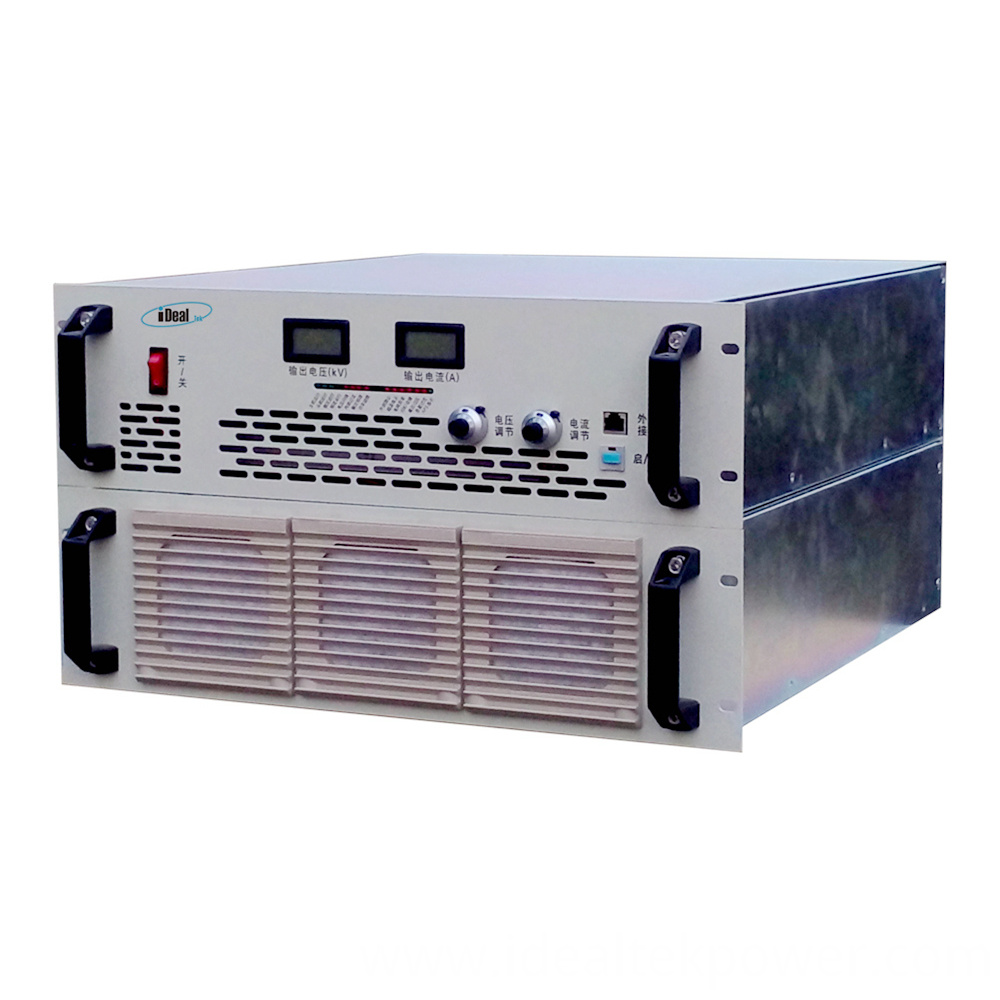

IdealTek CCPS-(N/P)12kW-20kV High Voltage Capacitor Charging DC Power Supply (12KW, 20KV, 600mA)

Input

Connection mode: Three-Phase, Four-Wire (PE), TN-S supply mode

Voltage: 380V±10%

Frequency: 50Hz/60Hz±5Hz

Output

Rated power: 12KW

Output voltage: 20KV

Output current: 600mA

Ripple (Vr.m.s.): ≤0.5% F.S

Efficiency: ≥90%

Setting and display

Control mode: RS485 communication interface, In line with MODBUS-RTU standard.

Display mode: 4/1/2 LCD digital display

Protection and Monitoring functions: Input protection, OVP, OCP. OTP, Output short-circuit protection

Noise: ≤65dB

Protection degree: IP20

Cooling method: Forced air cooling

Response time: ≤10us

Working conditions: -5°C～45°C, 10%～80% (non-condensing). indoor use only

Size: 482*265.5*566.5 (19” 6U standard chassis)

Weight: Approx. 45kg
