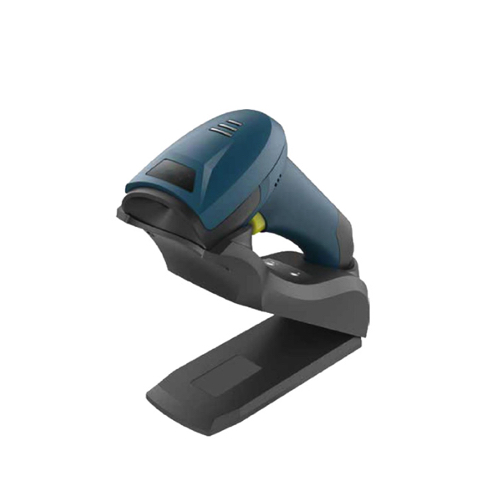

ICW ICW92620 Handheld Barcode Reader (≥50°(H), ≥35°(V); 360°, ±65°, ±60°)

Size: 105mm x 146mm x 70mm

Weight: 345g

Voltage: 5V

Current: 50mA (standby); 500mA (working)

Sensor pixel: 1280 pixels (H) x 800 pixels (V)

Light source: 650nm RED LED

Field of view angle: Horizontal ≥50°, Vertical ≥35°

Sensitivity: Tilt ±65°, Rotate 360°, Deflection ±60°

Motion tolerance: Up to 2m/s

Print contrast: ≥20%

Communication Interface: USB, RS232

Reading accuracy: ≥3.9mil

Code system

One-dimensional (1-D): UPC, EAN, Code 128, Code 39, Code 93, Code 11, Matrix 2 of 5, Codabar, Interleaved 2 of 5, MSI Plessey, GS1 DataBar, China Postal, Korean Postal, etc.

Two-dimensional (2-D): QR Code, MicroQR, PDF417, MicroPDF417, Data Matrix, Maxicode, Aztec, Hanxin, etc.

Typical code: Reading distance

Code 39: 0mm - 60mm

5mil: 0mm - 60mm

100% UPC-A (13mil): 0mm - 200mm

Operating temperature: 0°C ~ 50°C

Storage temperature: -40°C ~ 70°C

Humidity: 0% ~ 95% relative humidity, no condensation

Anti-vibration: Can withstand a 1.5-meter drop test

Ambient light immunity: 100 000 Lux
