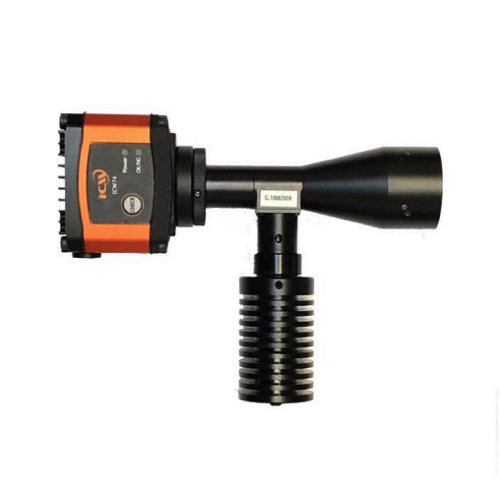

ICW ICW74V Fixed Barcode Reader (60mm)

Size (mm): 52.5 × 143.75 × 28.9 (Width × Height × Depth)

Weight: 247g

Power supply: 5-30VDC ±10%, 500mA

System structure: ARM926

Sensor type: Global Shutter CMOS

Frame rate: 60FPS

Pixel: 1280 pixels (H) × 800 pixels (V)

Image color: Mono

Configuration: Read challenging 1D/2D codes/DPM codes/Vericode codes

Reading distance: 60mm

Power consumption: Peak <2.5W, Average 2W

Interface support: RS-232, USB-virtual-COM, USB-keyboard, Ethernet

External input: One photoelectric isolation input, can be connected to NPN, PNP, relay

External output: One photoelectric isolation output Support one-dimensional barcode (1D): Code 128, Code 39, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Codabar, MSI Plessey, GS1 DataBar, China Postal, UPC, EAN, etc.

Support two-dimensional barcode (2D): Vericode, PDF 417, MicroPDF 417, DataMatrix, Maxicode, QR code, MicroQR, Aztec, Hanxin, etc.

Operating temperature: 0℃ to 50℃

Storage temperature: -40℃ to 70℃

Humidity: 0% to 90% relative humidity (no condensation)

Recognition accuracy: Min. 2mil

Security level: Light safety: EAN62471:2008

EMC electromagnetic interference: EMC electromagnetic compatibility: EN55032

Protection level: IP65

ESD protection level: EN55024, contact discharge: 8kV, coupling discharge: 20kV+

RF anti-interference: IEC61000-4-3, 10V/m

Artificial light immunity: 100,000LUX

Shock resistance: Can withstand the impact of multiple drops to the concrete floor from a height of 1.5 meters (allowing 5° deflection)

Certification: CE, FCC, RoHS
