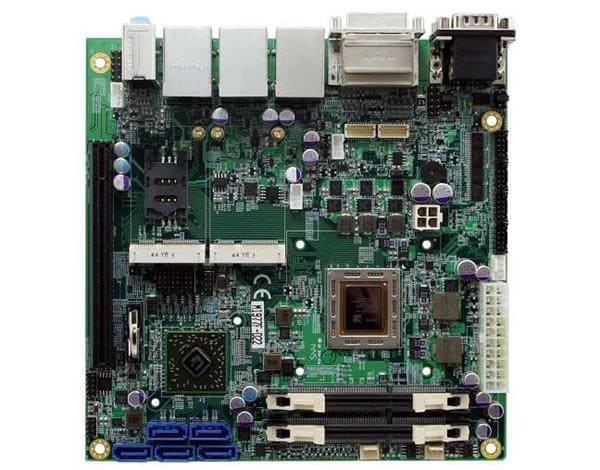

iBASE Technology MI977F-Q27 Single Board Computers AMD RX427BB 2.7G,Cooler,V/3*GL 6*COM,2*mPCIe,PCIe,SIM,iSMART

Core: RX-427BB

Chipsets: AMD A77E FCH, Fintek F81866AD-I

Frequency: 2.7 GHz

Dimensions: 170 mm x 170 mm

Form Factor: Mini-ITX

Memory Size: 32 GB

Memory Type: DDR3

Installed RAM: 0 GB

Interface Type: Audio, DP, eDP, Ethernet, GPIO, HDMI, Micro SD, mPCIe, mSATA, PCIe, PS/2, RS-232/422/485, SATA, USB 2.0, USB 3.0

Processor Type: RX-427BB

Processor Brand: AMD

Description/Function: AMD 2nd generation R-series mini-ITX motherboard

Maximum RAM Capacity: 32 GB

Operating Supply Voltage: 3.3 V, 5 V, 12 V

Maximum Operating Temperature: + 60 C

Minimum Operating Temperature: 0 C
