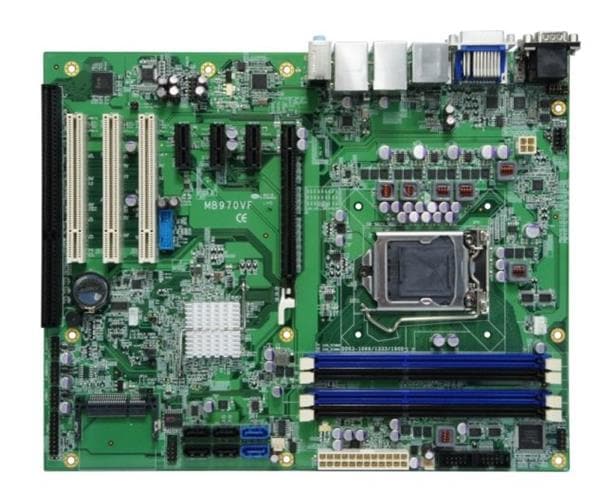

iBASE Technology MB970F Single Board Computers ATX SBC Intel 3rd Gen Ci3/5/7/Pent

Core: Core i3/i5/i7, Pentium

Chipsets: Q77

Frequency: 3.4 GHz

Dimensions: 338 mm x 122 mm

Form Factor: ATX

Memory Type: DDR3

Unit Weight: 1.497 kg

Installed RAM: 0 GB

Interface Type: Audio, DP, DVI-D, DVI-I, Ethernet, ISA, PCI, PCIe, RS-232/422/485, SATA, USB 2.0, USB 3.0

Processor Type: Core i3/i5/i7, Pentium

Processor Brand: Intel

Processor Series: Intel Core i3/i5/i7, Intel Pentium

Description/Function: LGA1155 B75 ATX motherboard with DVI-I, DVI-D, DisplayPort, dual gigabit LAN, RAID, EuP/ErP compliant, iSMART

Maximum RAM Capacity: 32 GB

Operating Supply Voltage: 12 V

Maximum Operating Temperature: + 60 C

Minimum Operating Temperature: 0 C
