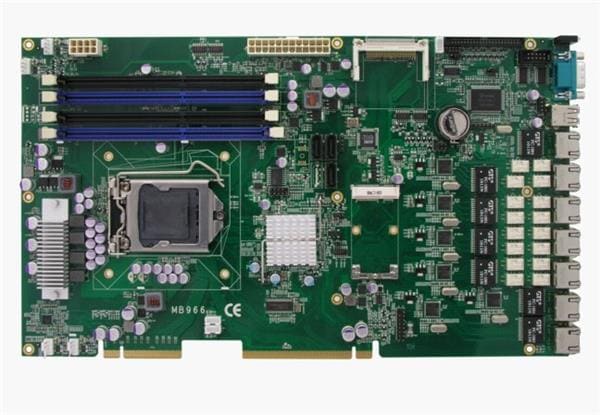

iBASE Technology MB966 Single Board Computers LGA1156 3450 PCH Ci3 5/7 V/6*L COM SATA

Core: Core i3/i5/i7, Pentium, Xeon

Chipsets: 3450

Frequency: 3.06 GHz

Dimensions: 355.6 mm x 206 mm

Memory Size: 16 GB

Memory Type: DDR3

Installed RAM: 0 GB

Interface Type: COM, Ethernet, mSATA, PCIe, SATA, USB 2.0

Processor Type: Core i3/i5/i7, Pentium, Xeon

Processor Brand: Intel

Processor Series: Intel Core i3/i5/i7, Intel Xeon, Intel Pentium

Description/Function: LGA1156 3450 networking motherboard with 6 GbE LAN, LAN 1/2 and 3/4 bypass, 3x SATA II

Maximum RAM Capacity: 16 GB

Operating Supply Voltage: 12 V

Maximum Operating Temperature: + 60 C

Minimum Operating Temperature: 0 C
