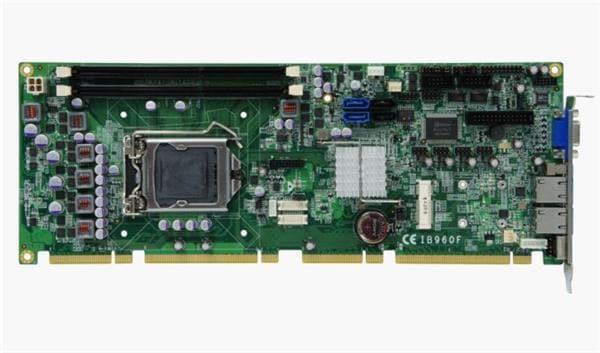

iBASE Technology IB960F Single Board Computers SBC Intel LGA1155 Q67 Ci3/5/7

Core: Celeron, Core i3/i5/i7, Pentium

Chipsets: Q67

Frequency: 3.4 GHz

Dimensions: 338 mm x 126 mm

Form Factor: PICMG 1.3

Memory Size: 16 GB

Memory Type: DDR3

Interface Type: Ethernet, RS-232/422/485, SATA, USB

Processor Type: Celeron, Core i3/i5/i7, Pentium

Processor Brand: Intel

Processor Series: Intel Core i3/i5/i7, Intel Pentium, Intel Celeron

Description/Function: LGA1155 PICMG 1.3 Q67 full-size CPU card with VGA, DVI-D, 24-bit LVDS, dual gigabit LAN

Operating Supply Voltage: 12 V

Maximum Operating Temperature: + 60 C

Minimum Operating Temperature: 0 C
