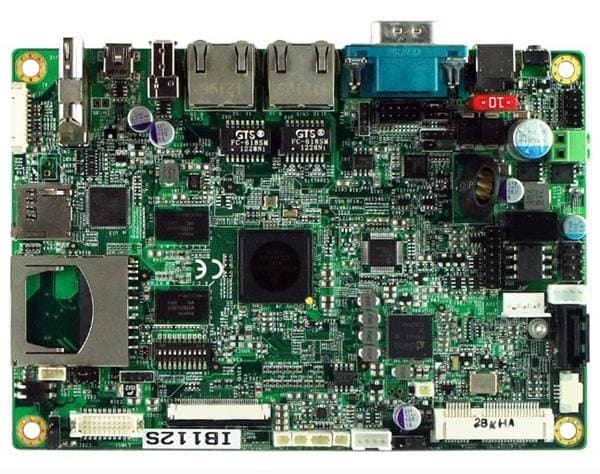

iBASE Technology IB112 Single Board Computers RISC iMX536 1G DDR3 1*LAN 3*COM

Core: ARM Cortex A8

Frequency: 800 MHz

Dimensions: 147 mm x 102 mm

Form Factor: 3.5 in

Memory Size: 1 GB

Memory Type: DDR3

Installed RAM: 1 GB

Interface Type: Audio, CAN, Ethernet, GPIO, HDMI, LVDS, mPCIe, RS-232, SATA, USB 2.0, VGA

Processor Type: i.MX536

Processor Brand: Freescale

Description/Function: 3.5-inch SBC with industrial-grade Freescale i.MX536 800 MHz, 1 GB DDR3, 10/100 LAN, SD, Micro-SD, 3 COM ports, Mini-PCIe x1 slot

Maximum RAM Capacity: 1 GB

Operating Supply Voltage: 12 V to 30 V

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
