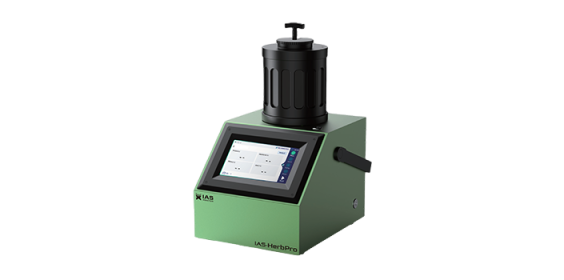

IAS Analysis IAS HerbPro Portable NIR Analyzer (Forage & Silage; 950–1650 nm)

Wavelength Range: 950–1650 nm

Detector: InGaAs Detector

Spectroscopic Principle: Grating + Array Detector

Baseline Noise: ≤ 0.0001 AU

Wavelength Repeatability: ≤ 0.005 nm

Wavelength Accuracy: ≤ ±2 nm

Absorbance Repeatability: ≤ 0.0001 AU

Measurement Time: ≤ 1 min

Light Source: Tungsten Halogen Lamp

Dimensions: L: 265 mm / W: 340.5 mm / H: 262.3 mm

Weight: 9 kg

Data Interval: 1 nm

Power Supply: 24V / 3A

Power Consumption: 25 W (Average)

Monitor: 7-inch Touch Screen

Operating System: Linux

Operating / Storage Temperature: 5–45°C / -20–60°C

Operating Humidity: < 75% RH
