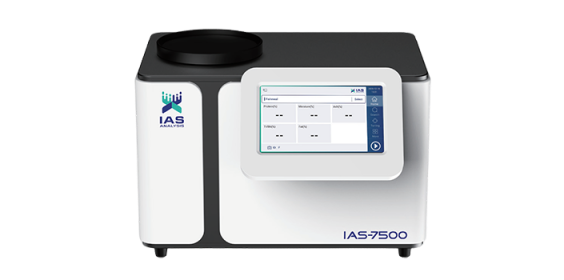

IAS Analysis IAS-7500 Laboratorial NIR Analyzer (920 – 1660 nm)

Wavelength Range (NIR): 920 – 1660 nm

Detector: Indium Gallium Arsenide (InGaAs) Detector

Spectroscopic Principle: Grating + Array Detector

Baseline Noise: ≤ 0.0001 AU

Wavelength Repeatability: ≤ 0.005 nm

Wavelength Accuracy: ≤ 1 nm

Absorbance Repeatability: ≤ 0.0001 AU

Measurement Time: ≤ 1 min

Data Interval: 1 nm

Dimensions: L 388 mm × W 360 mm × H 274 mm

Weight: 15 kg

Light Source: Tungsten Halogen Lamp

Power Supply: 24V / 3A

Power Consumption: 24V / 2.5A

Display Screen: 7-inch Touch Screen

Built-in Operating System: Linux

Operating Temperature: 5 – 45°C

Storage Temperature: -20 – 60°C

Operating Humidity: < 93% RH

Datasheet
