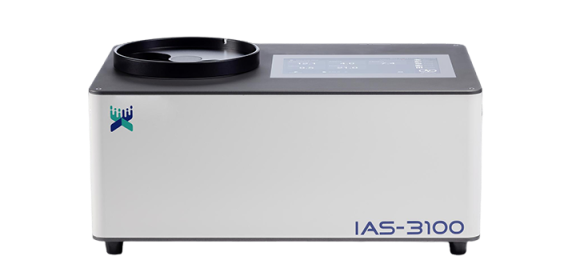

IAS Analysis IAS-3100 Portable NIR Analyzer (10 nm; 920–1660 nm)

Wavelength Range: 920–1660 nm

Resolution: 10 nm

Spectroscopic Principle: Array MEMS Micromirror + Grating

Detector: InGaAs Detector

Baseline Noise: ≤ 0.0001 AU

Wavelength Repeatability: ≤ 0.02 nm

Wavelength Accuracy: ≤ ±1 nm

Absorbance Repeatability: ≤ 0.0002 AU

Measurement Time: ≤ 1 min

Data Interval: 1 nm

Dimensions: L: 370 mm / W: 250 mm / H: 146 mm

Weight: 7 kg

Display: 7-inch Touch Screen

Operating Temperature: 5–45°C

Storage Temperature: -20–60°C

Operating Humidity: < 75% RH

Light Source: Halogen-Tungsten Lamp

Power Supply: 24V / 3A

Power Consumption: 20 W

Operating System: Linux

Feed Analysis: Analysis of moisture, protein, ash, and other key parameters in rice bran, rice bran meal, and soybean meal.

Fermentation Industry: Real-time monitoring and precise process control at critical stages.

Fruit Industry: Smart sorting and quality control for improved consistency.

Tobacco Industry: Rapid screening and efficient quality control.
