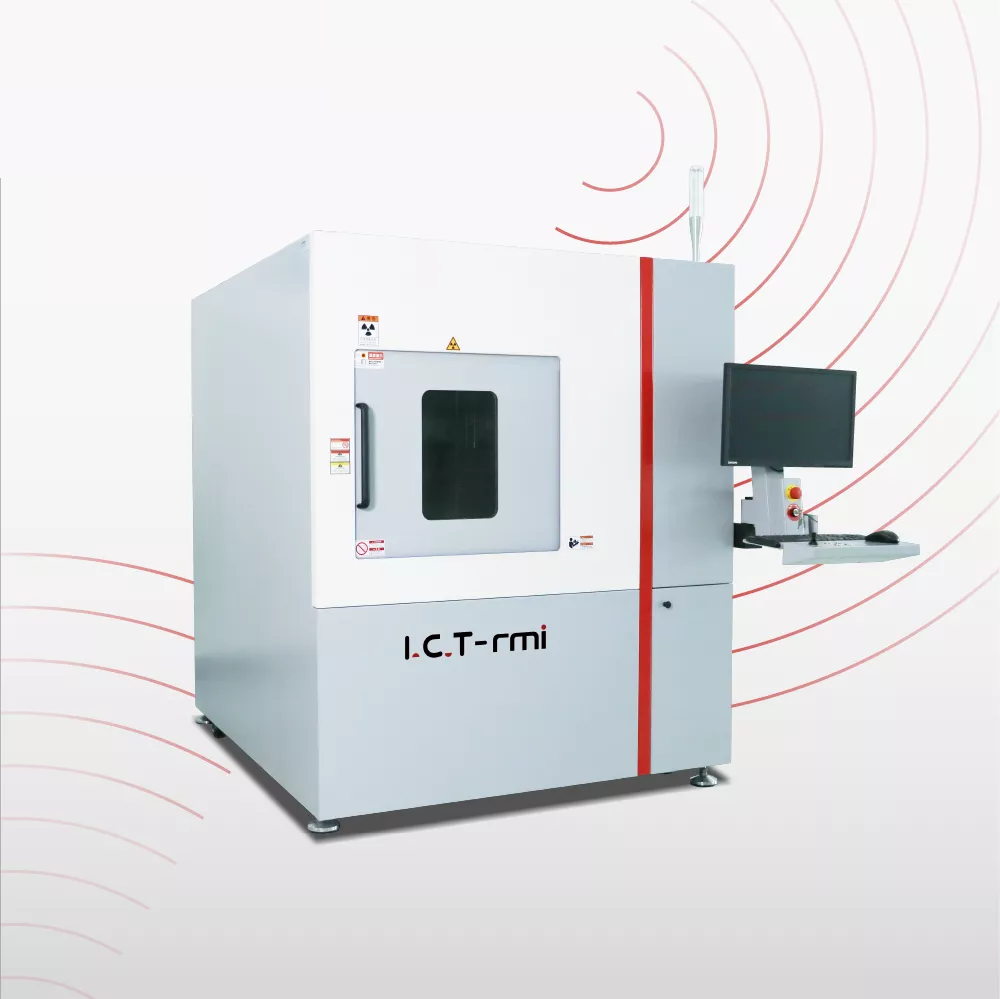

I.C.T X-9300 High Resolution SMT X-ray Inspection Machines for PCBs

X-Ray Tube:

Type: Transmissive Light Tube

Voltage: 100kv/110kv, 200μA/300μA

Spatial resolution: 1μm

Flat panel:

Image capture method: Flat panel digital imaging

Imaging accuracy: 76μm

A/D conversion quantized density value: 16bit

Resolution: 1648*1644px

Acquisition frame rate: 30 FPS

System:

Magnification: 2500x

Operating system: Windows 10

Power: AC110-220V, 50-60HZ, 1800W

Radiation safety test: <1 uSV/H

Structure:

Max. Loading size: 690*685mm

Max. Inspection area: 670*665mm

Max. Loading weight: ≤20kg

Platform rotation angle: 60°

Dimension: 1510*1770*1850mm

Weight: 1800kg

Platform movement: Manual/Auto
