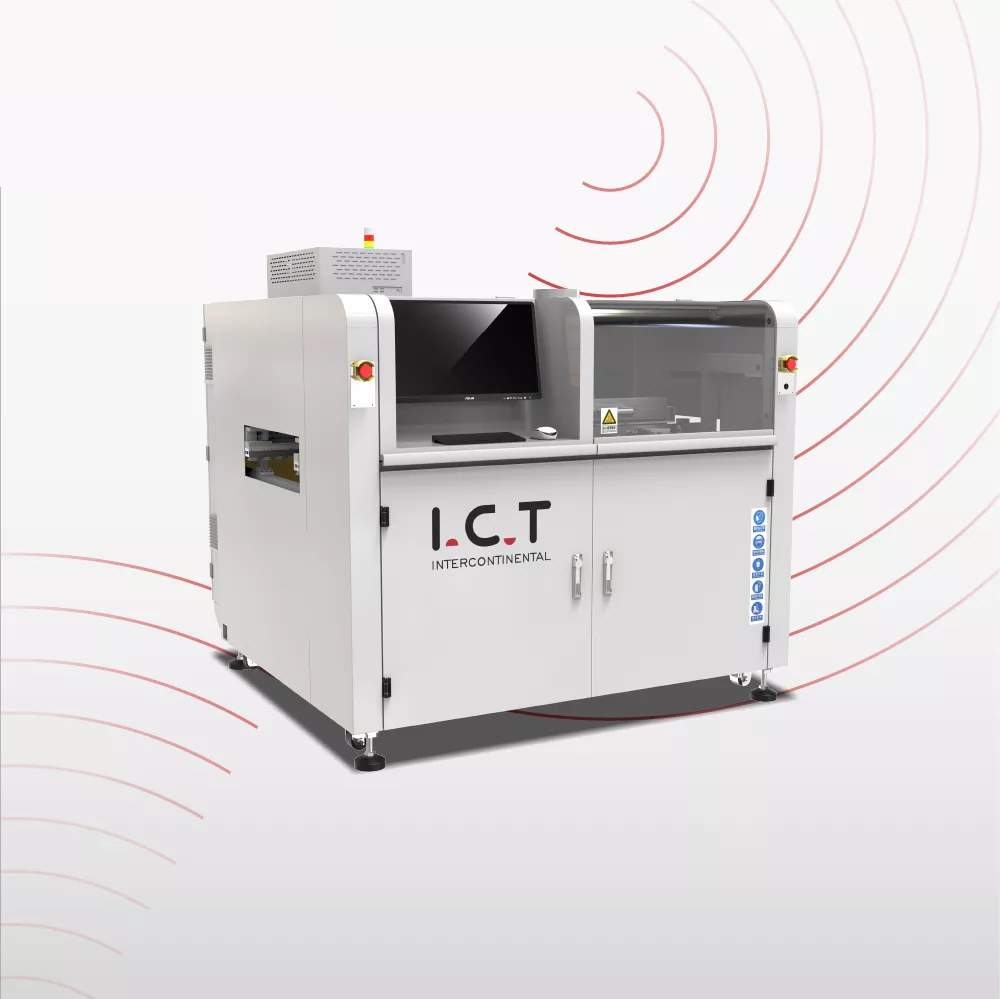

I.C.T I.C.T-SS540 On-line Selective Wave Soldering Machine (0~20mm/s)

On-line Modular: Spray + Preheating & Soldering

Soldering System:

Nozzle Quantity: 1

Solder Pot Quantity: 1 set

Double Pot (Option): N/A

Solder Pot Power: 2.35kw

Flux System:

Flux Storage Tank: 1L

Flux Support: Flux Alarm, Automatic

Spray Nozzle: Germany Jet Valve (Spot and line spraying) 1 set

Spray Nozzle Size: 130um (180um, 210um Option)

Spray Speed: 0~20mm/s

Spray Nozzle Move Speed: 0~400mm/s

Preheating System:

Preheating Mode: Hot air and IR

Preheating Area: L500*W500mm

Preheating Zone: Top hot air: 2, Bottom IR: 1

Bottom Preheating Power: Max.12kw

Top Preheating Power: Max.6kw

Warm-up Time: Approx.15min (setting 150℃)

Control Mode: PC+PLC

Transport System:

PCB Size (with fixture): 120*60~500*500mm

PCB Replacement: Online

PCB Top Clearance: 120mm

Transport Height: 900±20mm

Transport Width: 60~500mm

Dimension：mm: L1850*W1850*H1480

WeightApprox: 800kg
