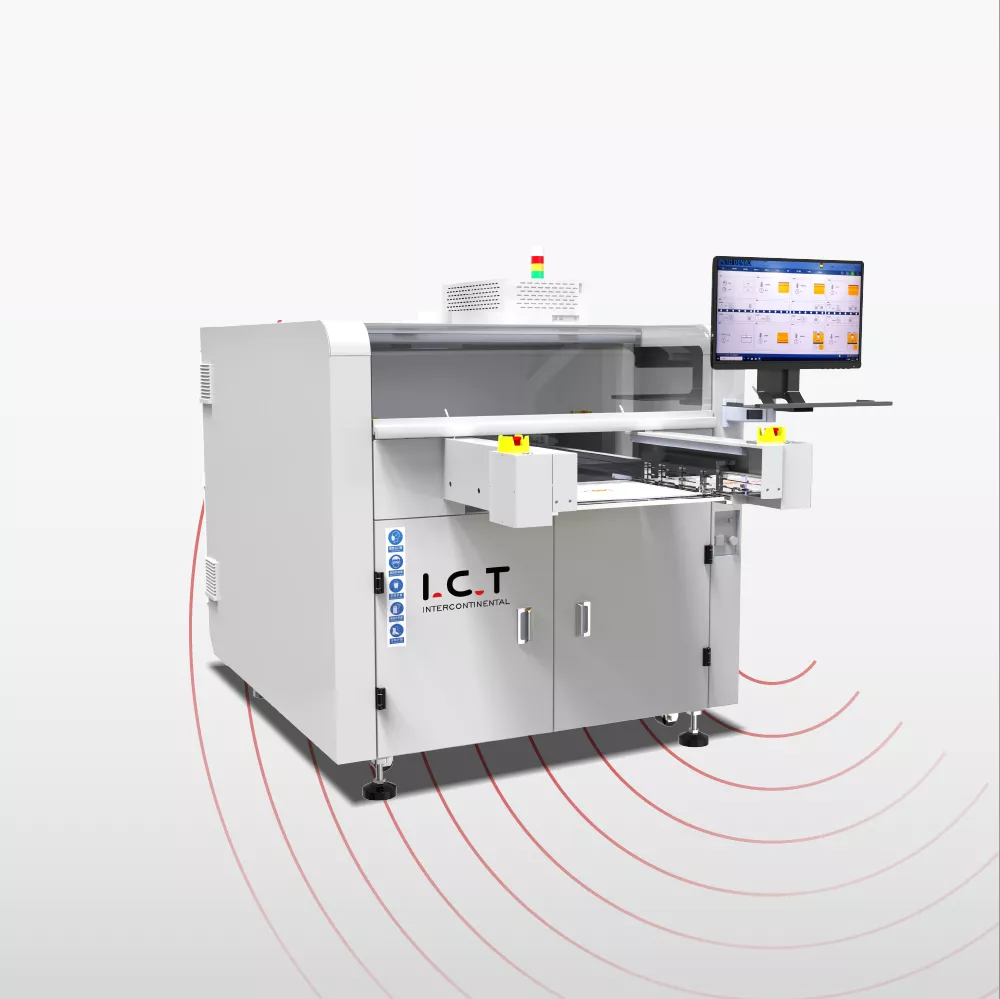

I.C.T I.C.T-SS430 Off-line Selective Wave Soldering Machine (3 ~ 8mm)

Flux Storage Tank: 1L

Flux Support: Flux Alarm, Automatic

Spray Nozzle: Germany Jet Valve (Spot and line spraying) 1set

Spray Nozzle Size: 130um (180, 210um Option)

Spray Range: 3~8mm

Spray speed: 0~20mm/s

Spray Nozzle move speed: 0~400mm/s

Spray Precision: 0.1mm

Spray Pressure: 0.05~0.1 MPa

Preheating Mode: IR Heating

Preheating Area: L500mm*W500mm

Soldering Precision: ±0.25 mm

Soldering monitoring: CCD

Solder Capacity: 12Kg

Max PCB Size: 500*500mm

Max PCB Size: 60mm

PCB Thickness: 0.5-6.0mm

PCB Weight: <20Kg

Operating System: Windows10

Power Supply: 220VAC±10%, 50/60HZ

Dimension: L1400*W2580*H1722mm

Weight: Approx:700kg
