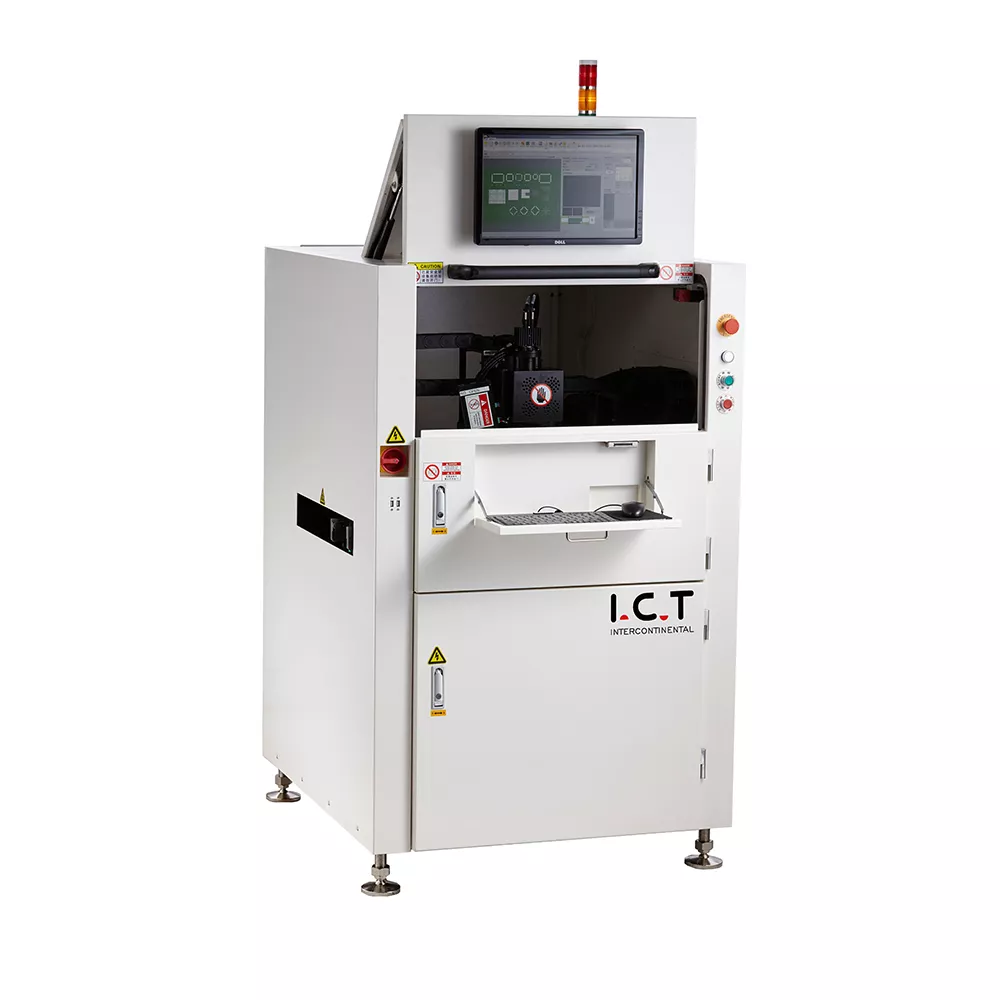

I.C.T I.C.T-S600 3D SPI SMT Solder Paste Inspection Machine (55*55 ~450*310mm Dual)

PCB Size: 55*55 ~450*310mm Dual

PCB Tickness: 0.5 ~ 5.0mm

PCB Weight: ≤5.0kg

Conveyor Adjustment: Manual/automatic

Measure Type: Height, Area, Volume, Offset, Bridge, Shape

Paste Height: 0 ~ 500um

Min Measure Size: 180 ~ 180um

Min Pad Pitch: ≥100um

Measure Principle: Multi color vector boundary measurement

Height Resolution: 0.67um(theoretical value)

Camera Pixel: 530M

FOV Size: 28mm/35mm/37mm/41mm

Detection Speed: 0.45s/FOV

Program Time: 5 ~ 10min

Data Type: Gerber Data 274D/274X, Scan PCB

Barcode Scanning: Camera scanning (Option: Barcode Gun)

Power: AC220,50/60Hz,1KVA

Machine Dimension: 830*1620*1470mm

Weight: 1300kg
