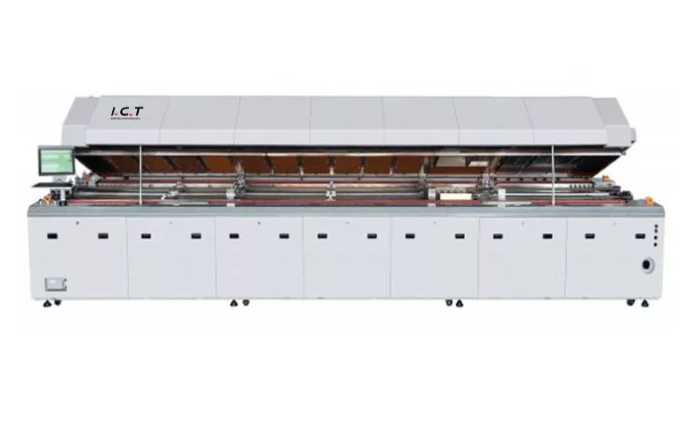

I.C.T I.C.T-LV733 Vacuum Reflow Oven Machine

DIMENSIONS AND WEIGHTS:

Dimensions: 6300*1430*1530mm

Required area: 9.45㎡

Weight: ca. 2500 kg

Load per unit area 400 kg/m2: 400 kg/m2

PROCESS CHAMBER HEATING:

Length of heating zones: 3730mm

Quantity of preheating zones: 9

Length of preheating zones: 3450mm

Quantity of peak zones: 1

Warm up time: ca. 30 min

VACUUM ZONE:

Vacuum maximum pressure: 0.1-12kpa

Vacuum pump flow: 1000/min

Pressure relief time: ≦10S

Product time: ≧40S

COOLING ZONE:

Quantity of cooling zones: 3[top 3(Water cooling)/bottom 3(Air cooling)]

Length of cooling zones: 1460mm

CONVEYOR:

Transport Level: 900 ±20 mm

PCB Size: L320 - W400mm

Conveyor control: 3-stage, independent control

Conveyor Number: 1

Adjustable conveyor speed: 300 - 1800 mm/min

INTERFACES:

Type: SMEMA

Voltage supply: 5-Wire System 3P,N,PE 380 VAC ± 5 % 50 Hz ; Other voltages upon request

Connected load: 68KW

Operating capacity: 16 KW
