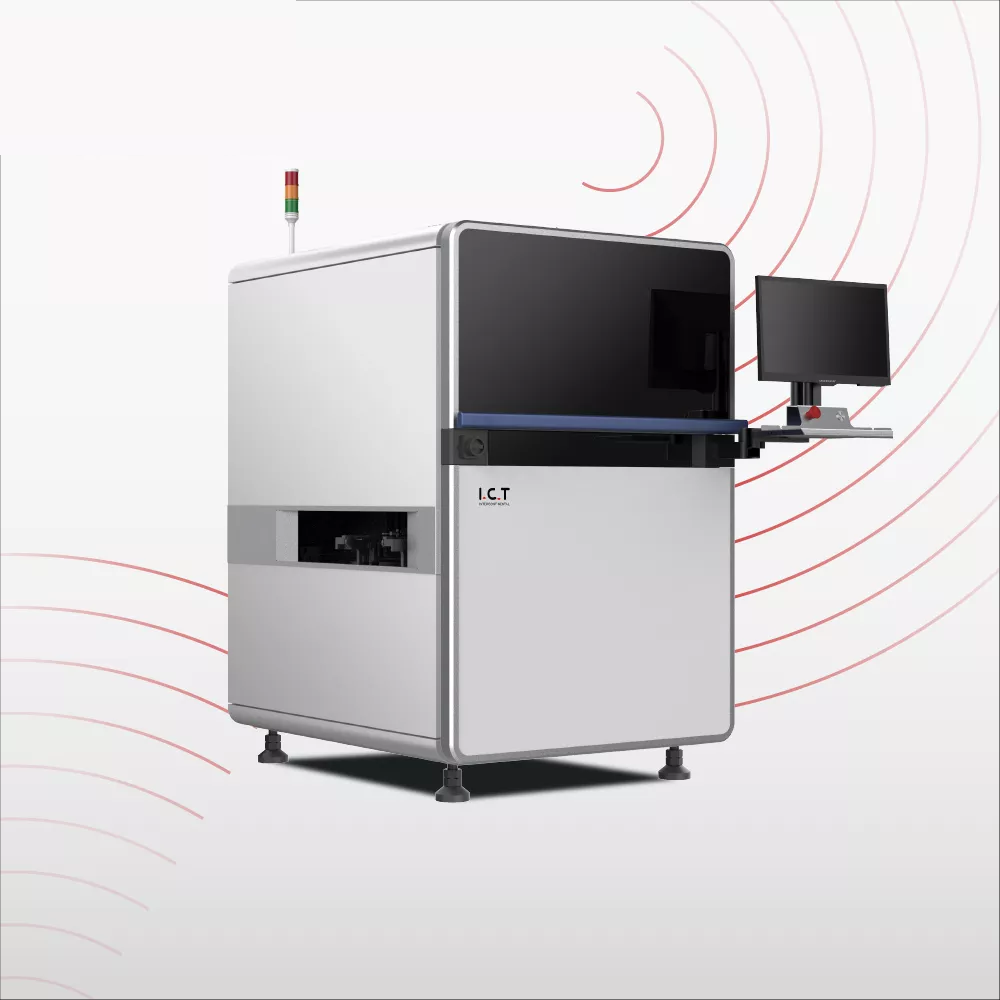

I.C.T I.C.T-AI-5146C Automatic Pcb Optical Inspection Coating Online AOI Machine
ManufacturerI.C.T(View more products from this manufacturer)
ModelI.C.T-AI-5146C
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
FOV: 15um@36*30mm(standard), 10um@24*20mm, 15um@45x45mm, 10um@40*30mm
Resolution: 15um(Standard), 10um
Camera: Single side camera12M
Inspection Speed: 0.23sec/FOV
PCB Height: Top: 25mm, Bottom:80mm
PCB Thickness: 0.3 ~ 6.0mm
PCB Edge: 3.0mm
PCB Warpage: ±3.0mm
PCB Weight: Max:10Kg
Conveyor Height: 900±20mm
With Adjustment: Manual & Auto
Conveyor Direction: L ~R or R ~L
Power: AC220 50/60Hz,5A
Rated power: 380W
Communication: SMEMA
Weight: 750Kg
